splitting the cases for inspection purposes only


tools needed

17mm spanner
m8 allen key attachment
m6 allen key attachment
plastic or rubber mallet
small thin flat head screw driver

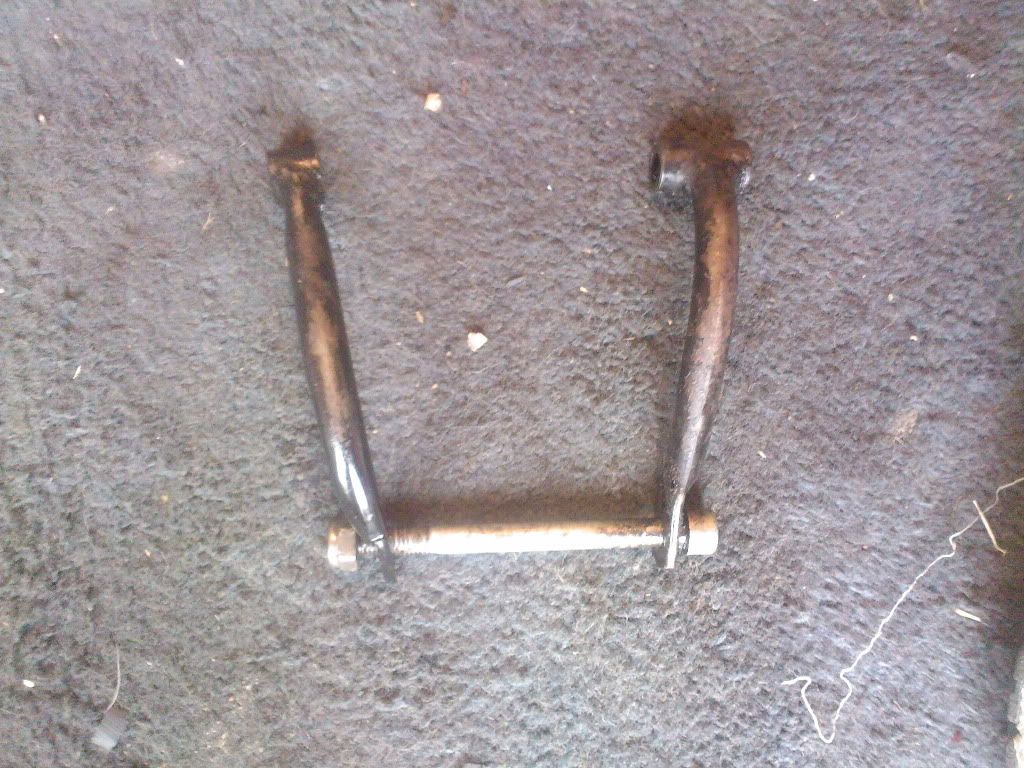

first off remove the engine front mounts from its lower mounting position on the cases

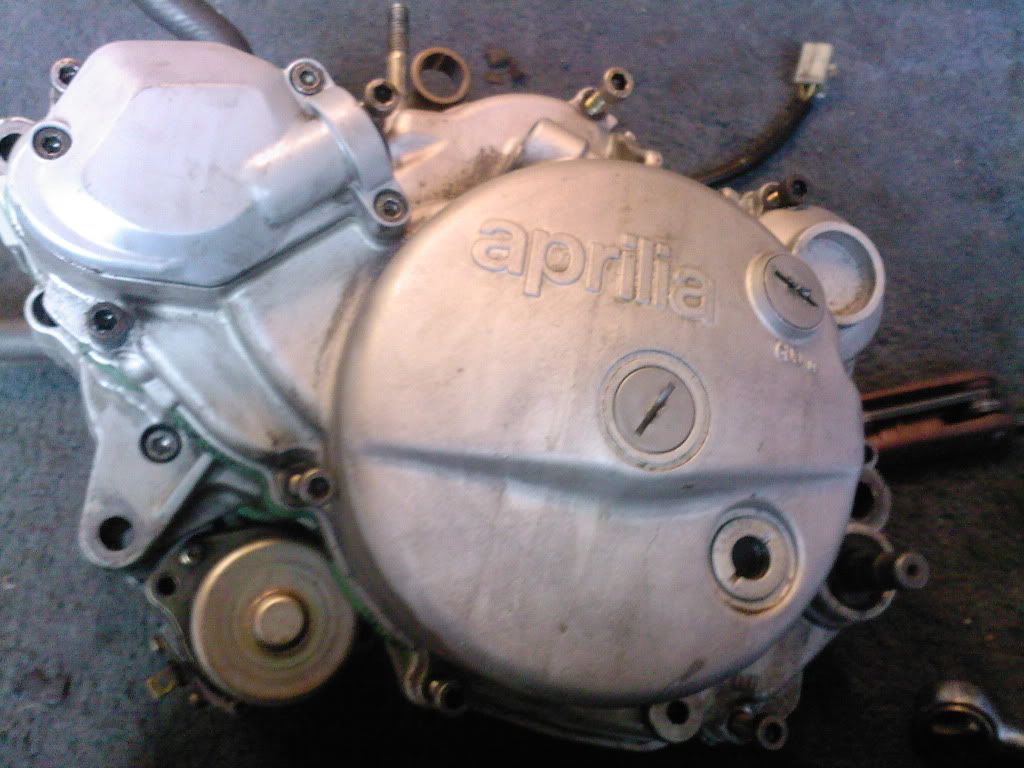

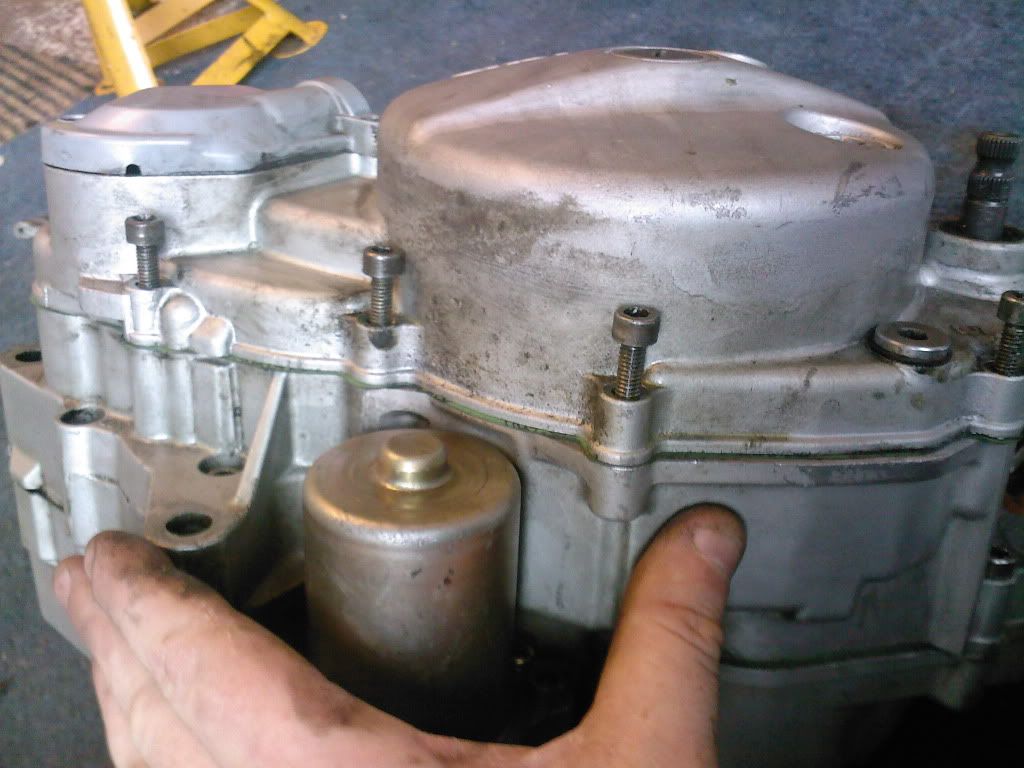

then loosen off and remove the 9 clutch case bolts

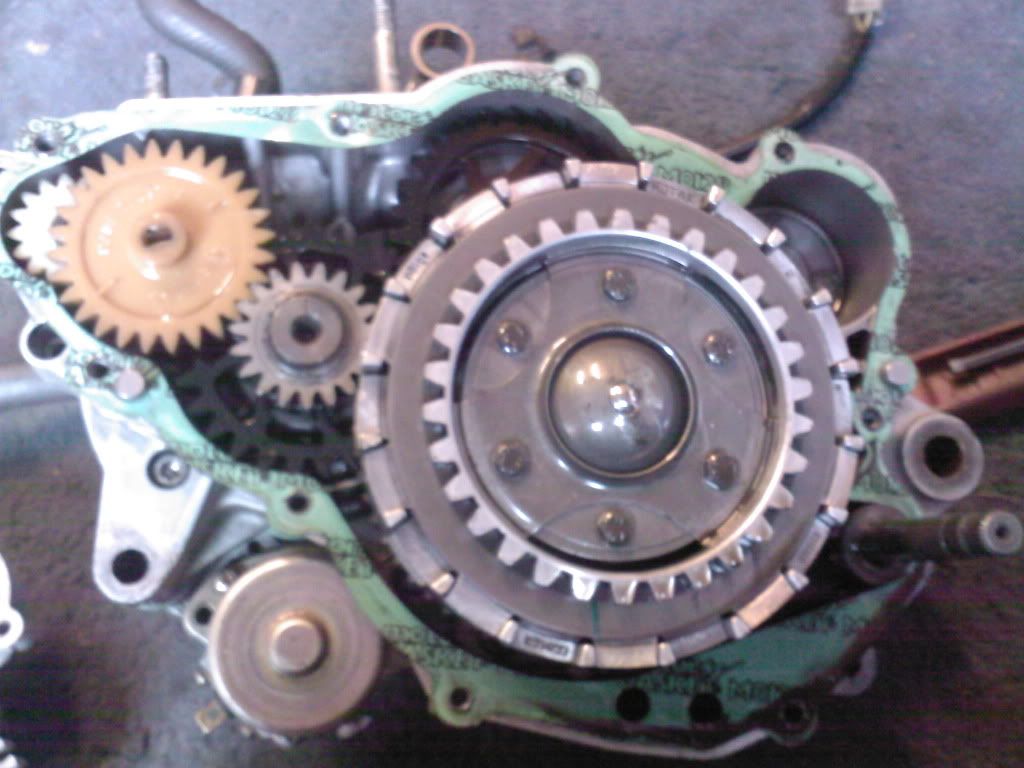

and gently lift off the clutch case

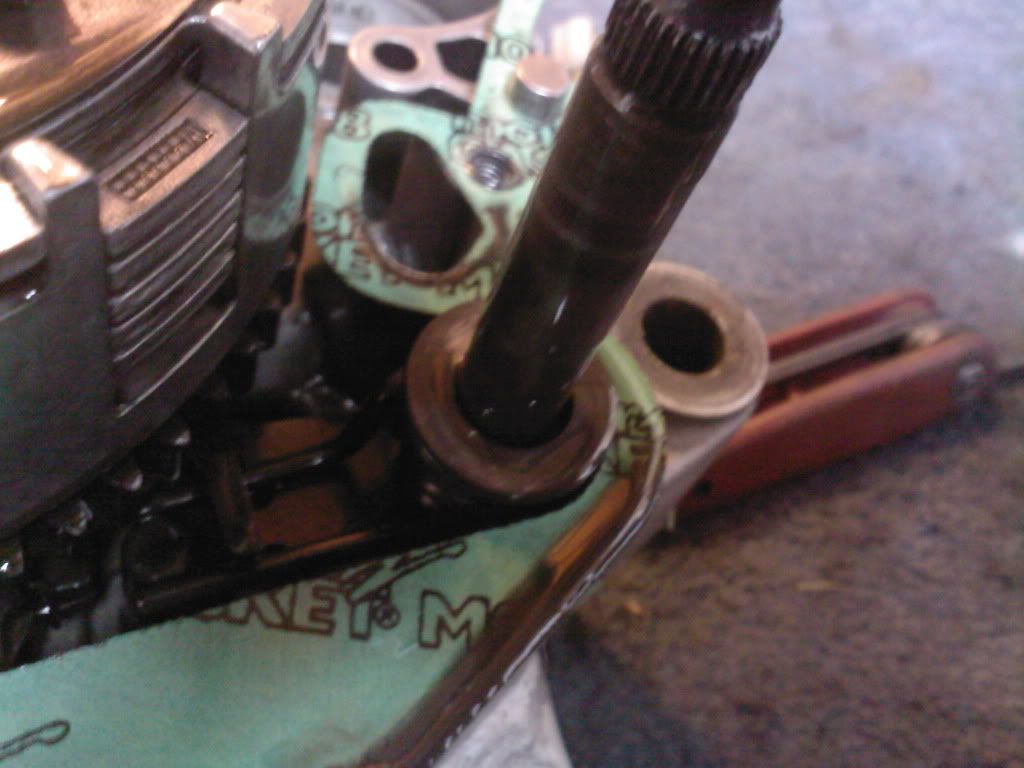

take note of the 2 spacer / washers on the gear selection rod / shaft dont lose them

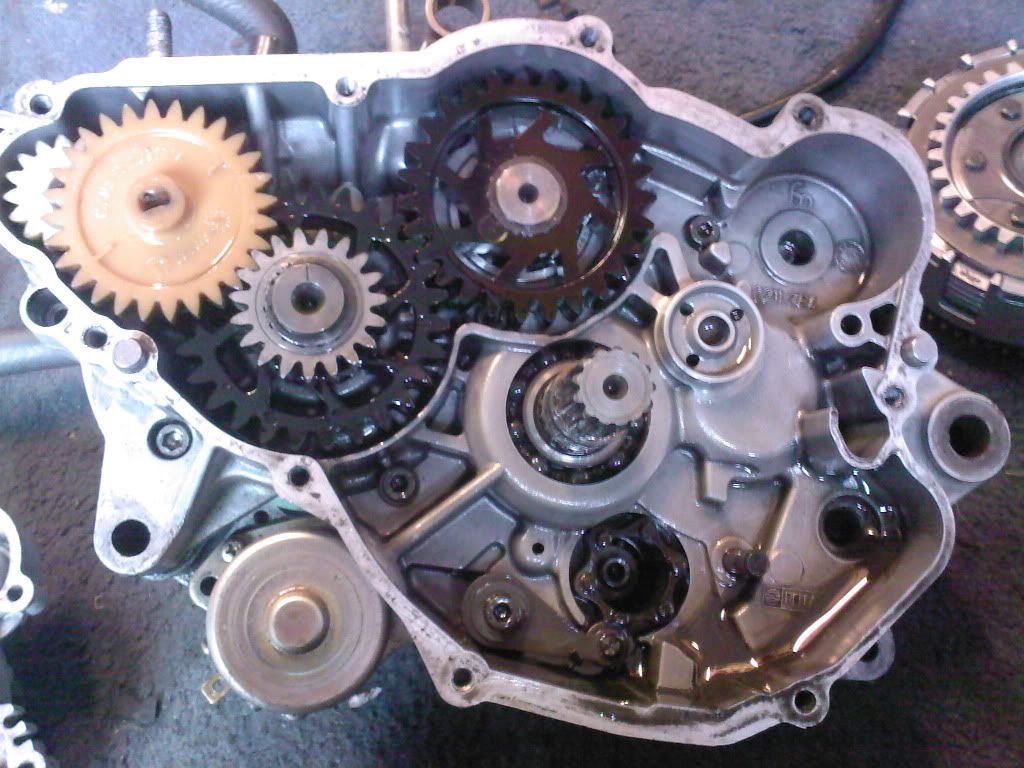

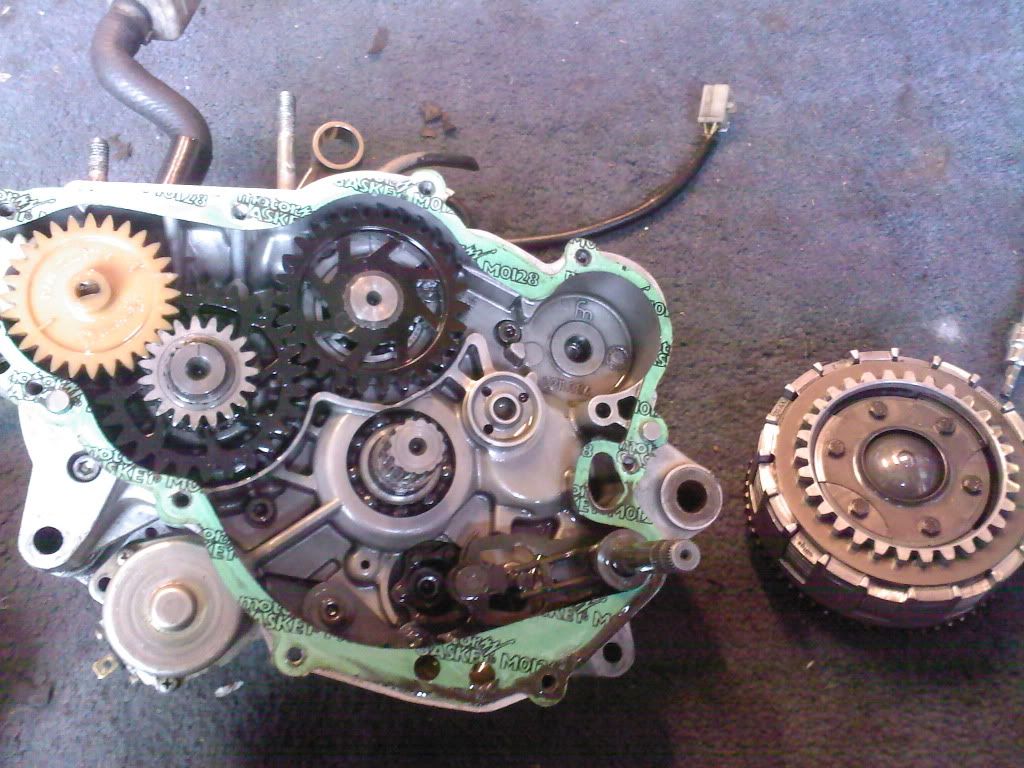

now gently lift off the clutch basket

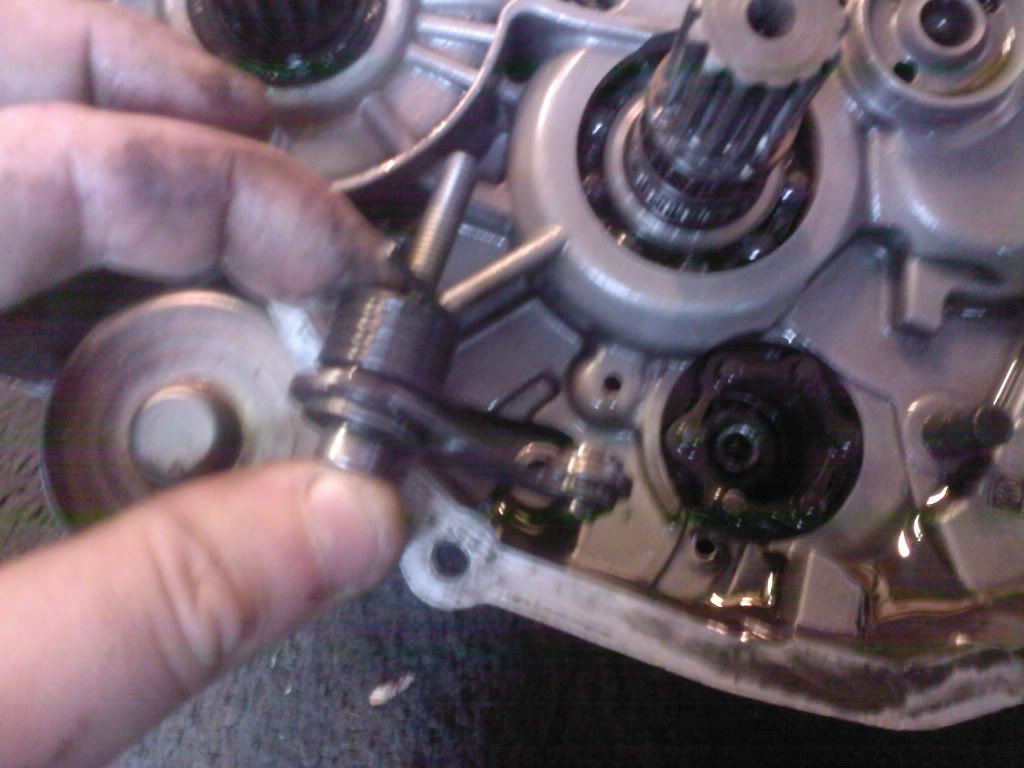

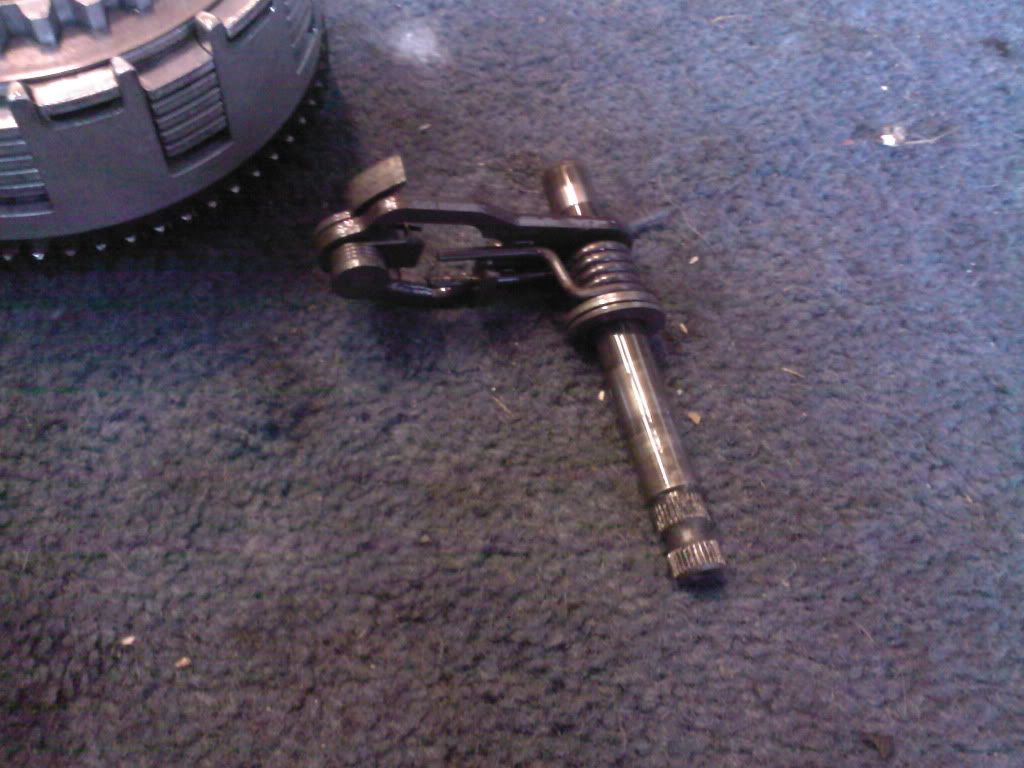

remove the gear selector mechanism






now remove the oil pump drive gear

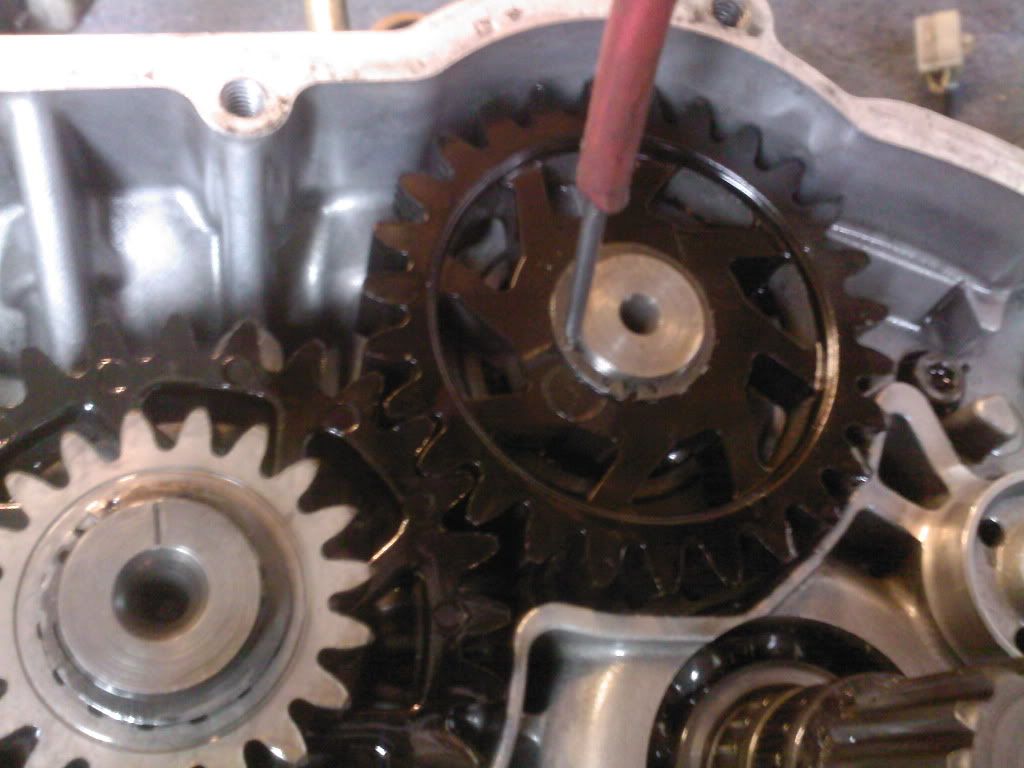

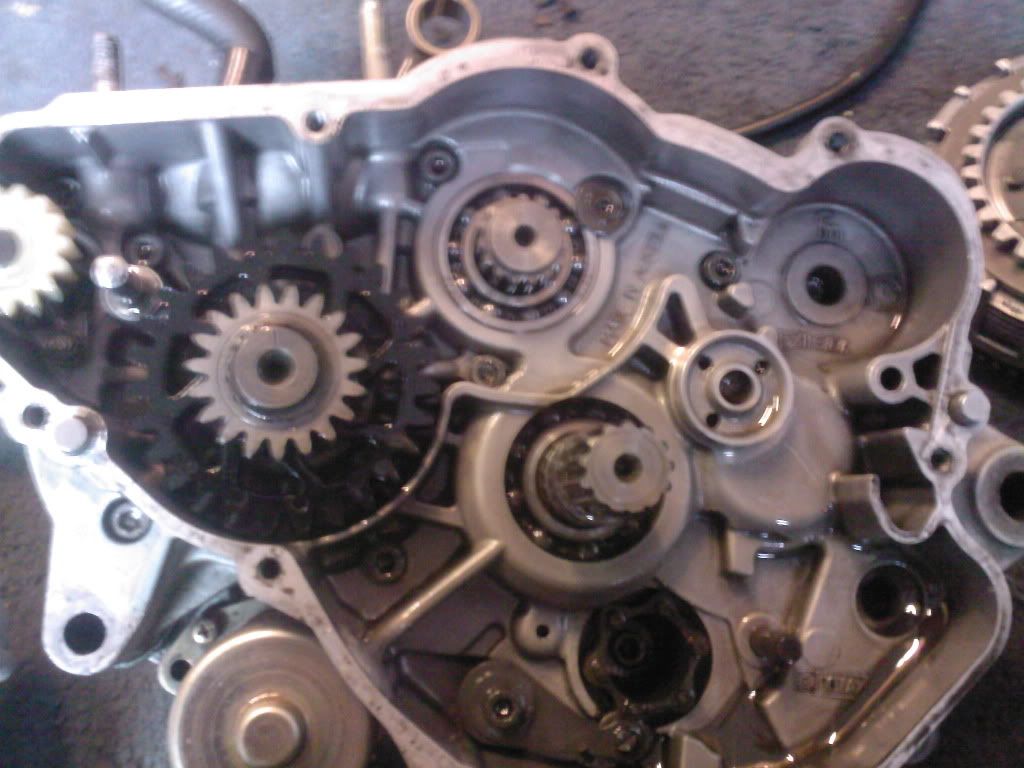

then remove the circlip on the balance shaft primary drive gear

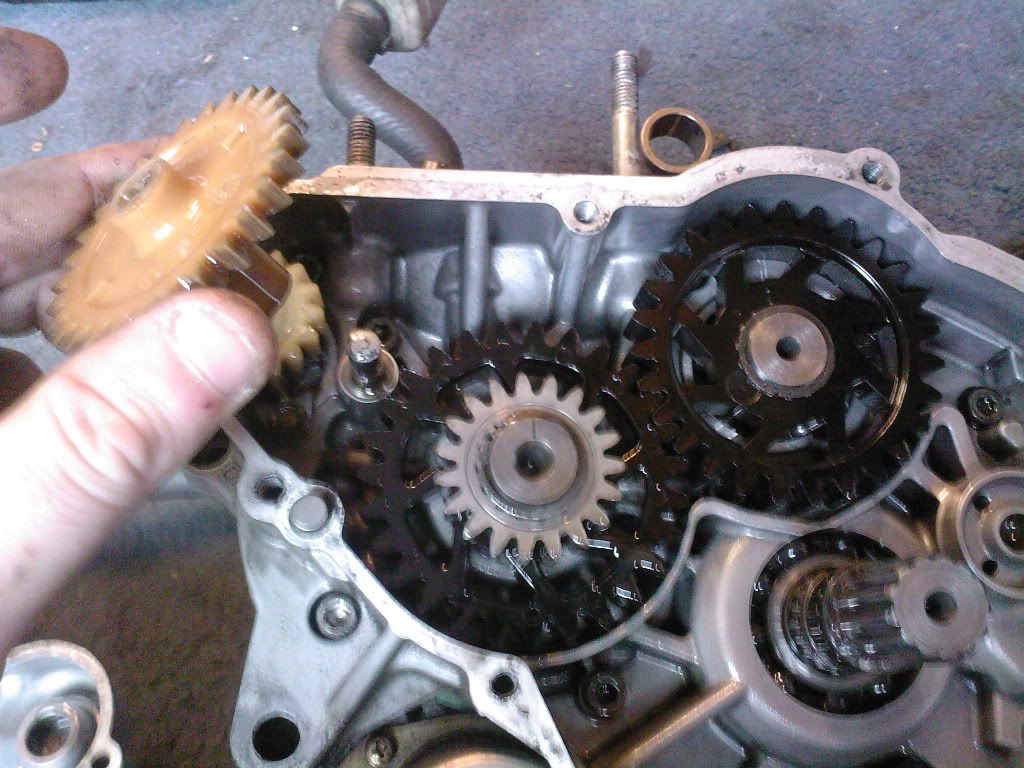

and lift the gear off off the shaft end

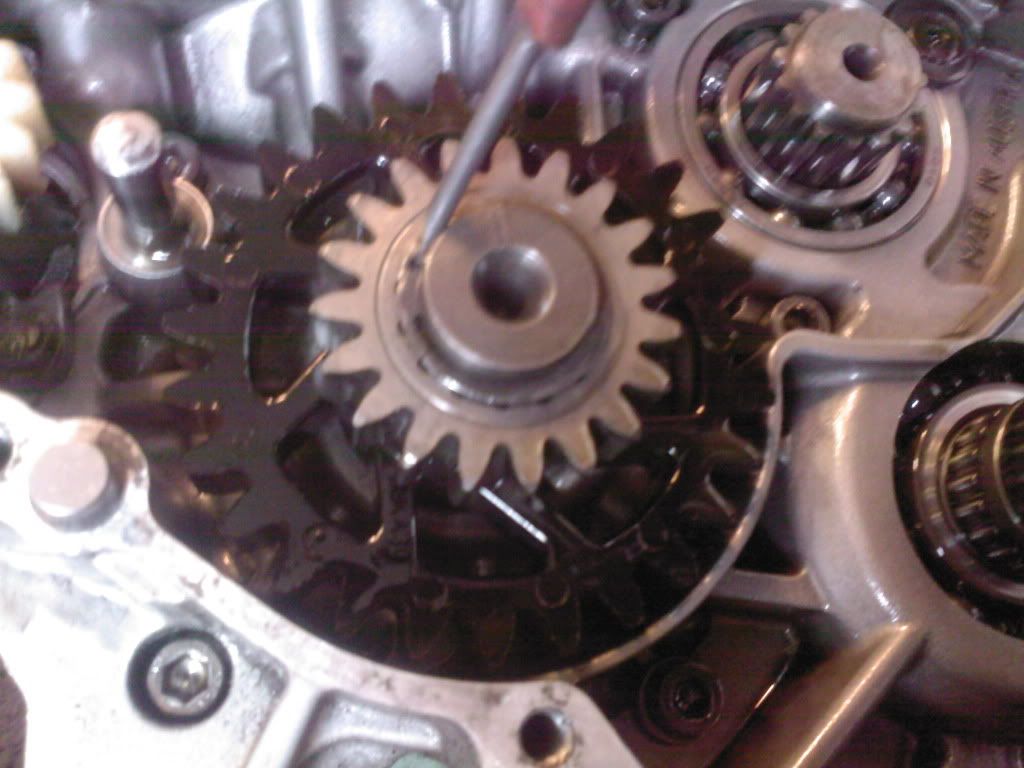

now remove the circlip off the crank shaft primary drive gears and remove the gears

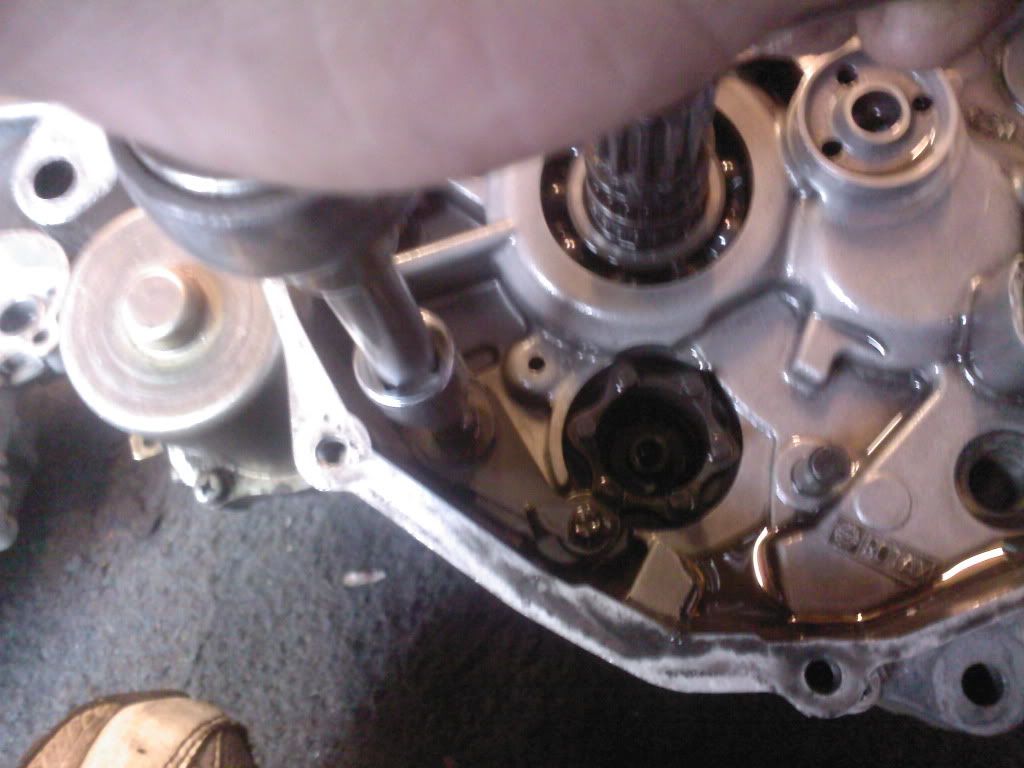

loosen and remove the gear drum stop mechanism

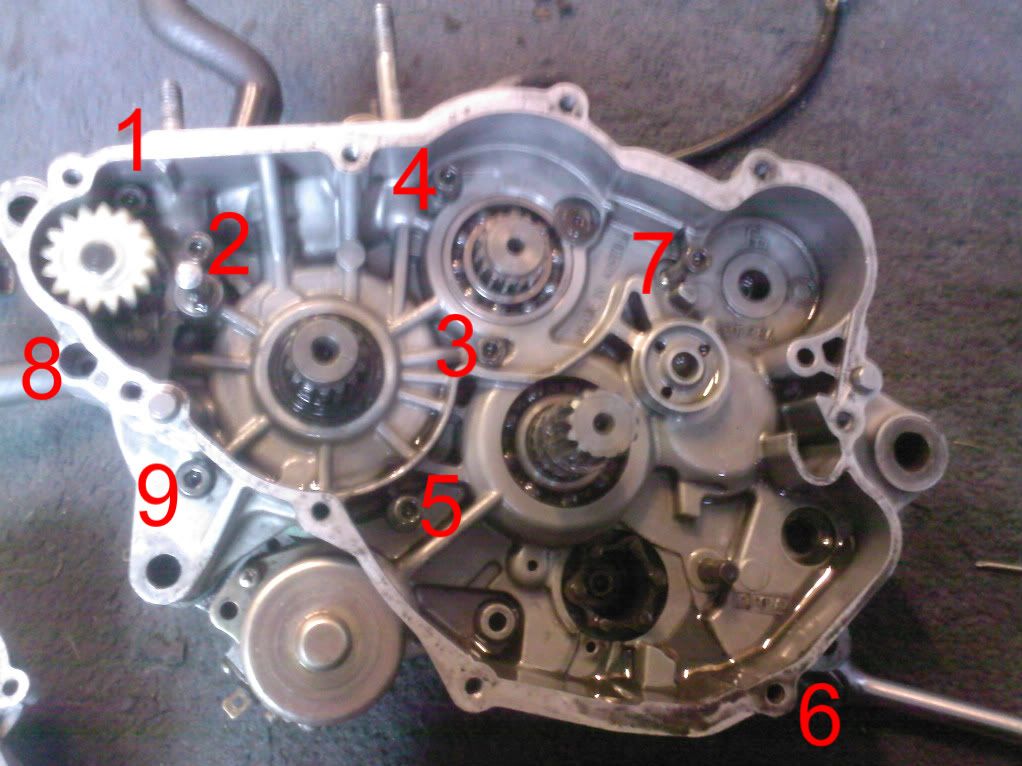

and remove all the crank case bolts




once all the bolts are removed place the engine sat up as it would in the bike

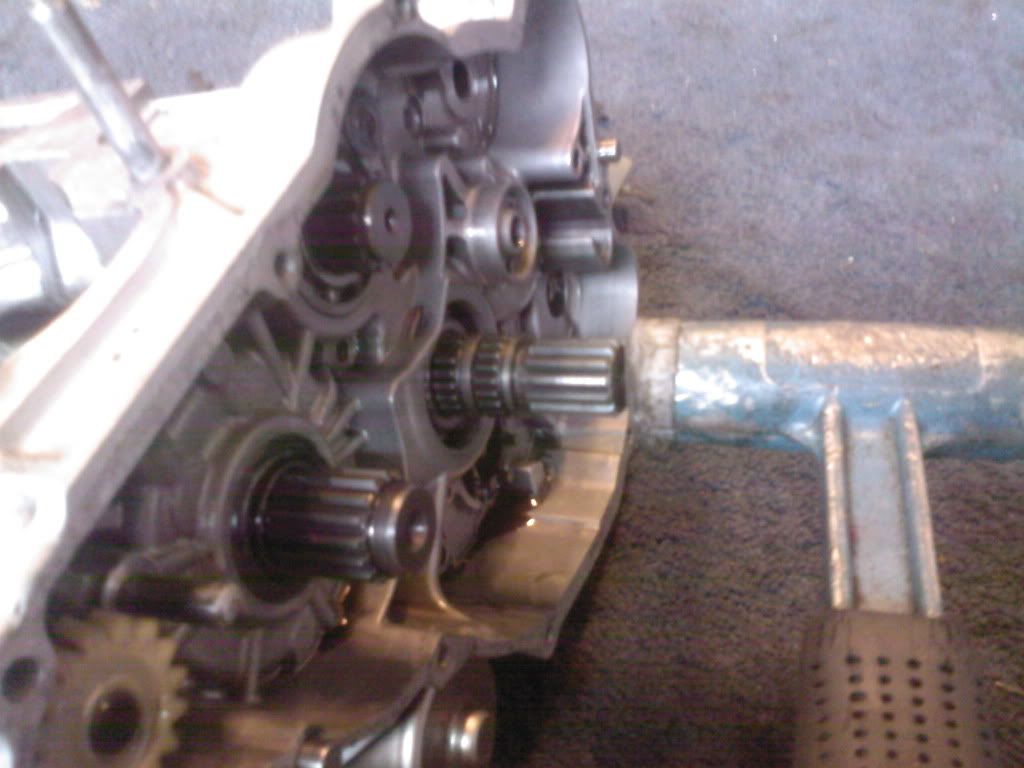

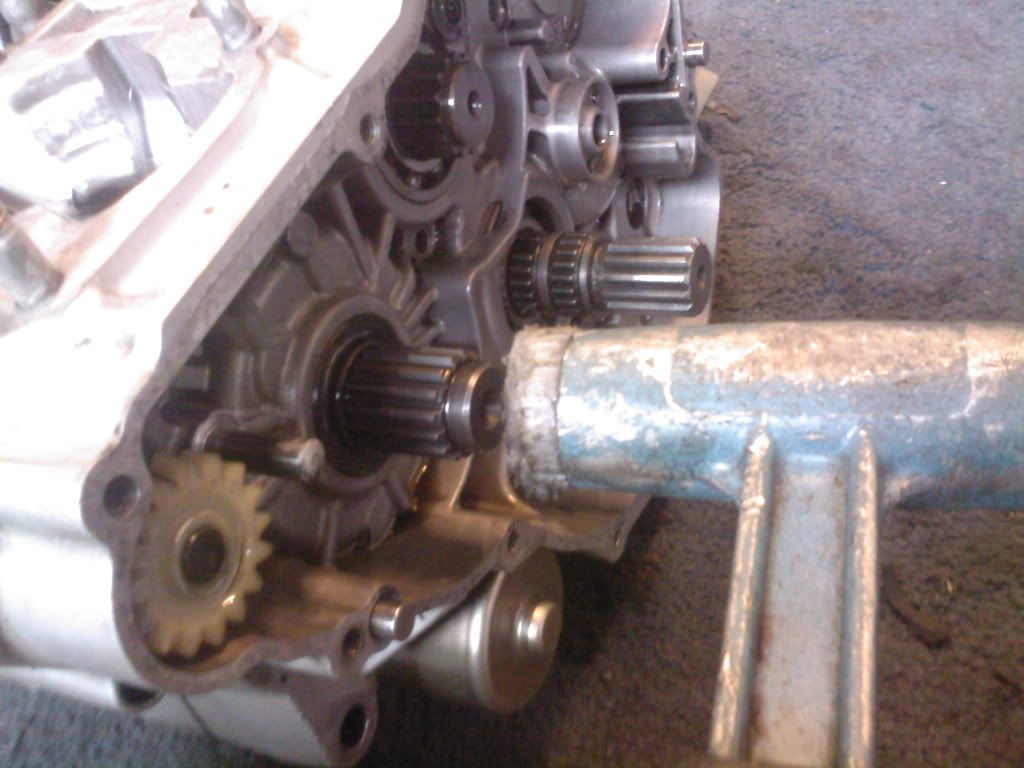

now tap the shafts with a non metal hammer (rubber or plastic) only tap do not damage the shaft ends






the cases will begin to pry apart





at this point place the engine back on it side clutch case side upwards and gently lift off the 1 half of the crank case
note the spacer / thrust washer on the output shaft dont lose it

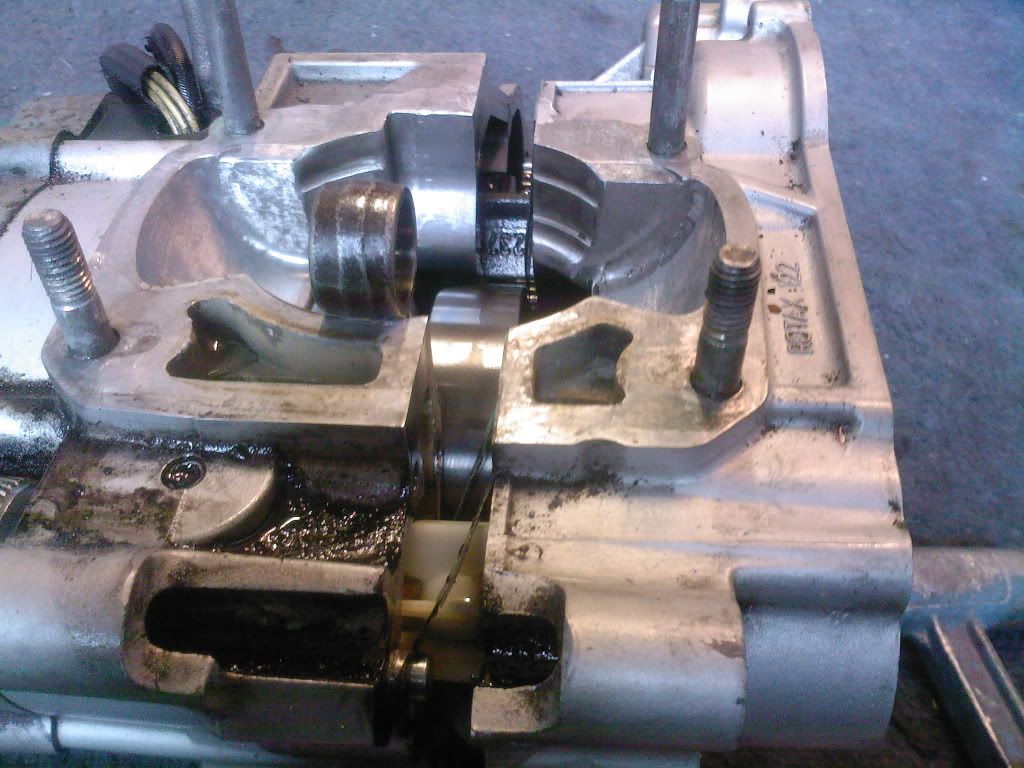

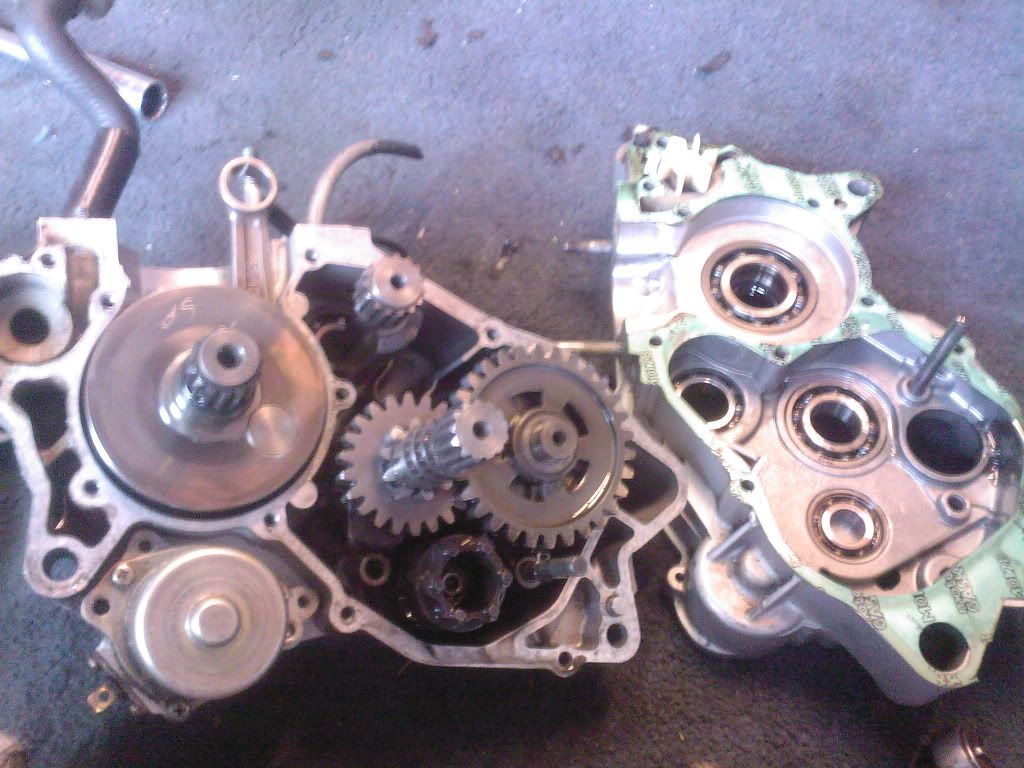

cases are split you can now inspect the innerds for wear or damage


·
Registered
Joined
·
510 Posts
steve you should make some kind of book and just sell it on here lol, you would make loads


·
Registered
Joined
·
142 Posts
I managed to get my engine out without the need of using a special tool on the swingarm , just undid did the bolt on the left and jobs a good un


·
Premium Member
Joined
·
11,699 Posts
Discussion Starter · #33 ·
I managed to get my engine out without the need of using a special tool on the swingarm , just undid did the bolt on the left and jobs a good un
getting it back in might be a problem then as the swingarm pivot bolt adjusts the position of the swingarm and is handy to loosen it off so all the other mounts have more space to line up on reasemble
tighting the pivot pushes the swingarm loosening it pulls it
if its not done properly youll end up with the rear wheel out of allighnment with the front (which is a mot fail)


·
Registered
Joined
·
296 Posts
Thanks for the great guide pego came to very good use!!

Cheers Jak


·
Registered
Joined
·
114 Posts
pego any chance i could have a link to your photobucket please? can't see any pics and would like them if i'm doing this bottom end tomorrow lol


·
Registered
Joined
·
296 Posts
that e- clip assortment box in the piston photo must come in handy the amount of e-clips iv lost from my carb needle grrrrrrrrrrr
