As some of you are aware,over the past few months in my spare time i have been engineering a hydraulic clutch conversion for the Aprilia Rs 125.Finally,here is the proof of concept.This thread will be a long read with plenty of photos.
I have made this for my own machine.It would not be practical to make this for anyone else,because of the time put into this.It would cost in materials and labour atleast £500 minimum.Therefore this is a one off.I have never seen another Rs 125 with a hydraulic clutch conversion.So maybe this is a first.Hope you enjoy the read.
Danny
So having a spare motor kicking about (Thanks to LTR250).I decided to set to the task in hand.
First off,was to strip the clutch cover of plugs and the clutch cam mechanism.

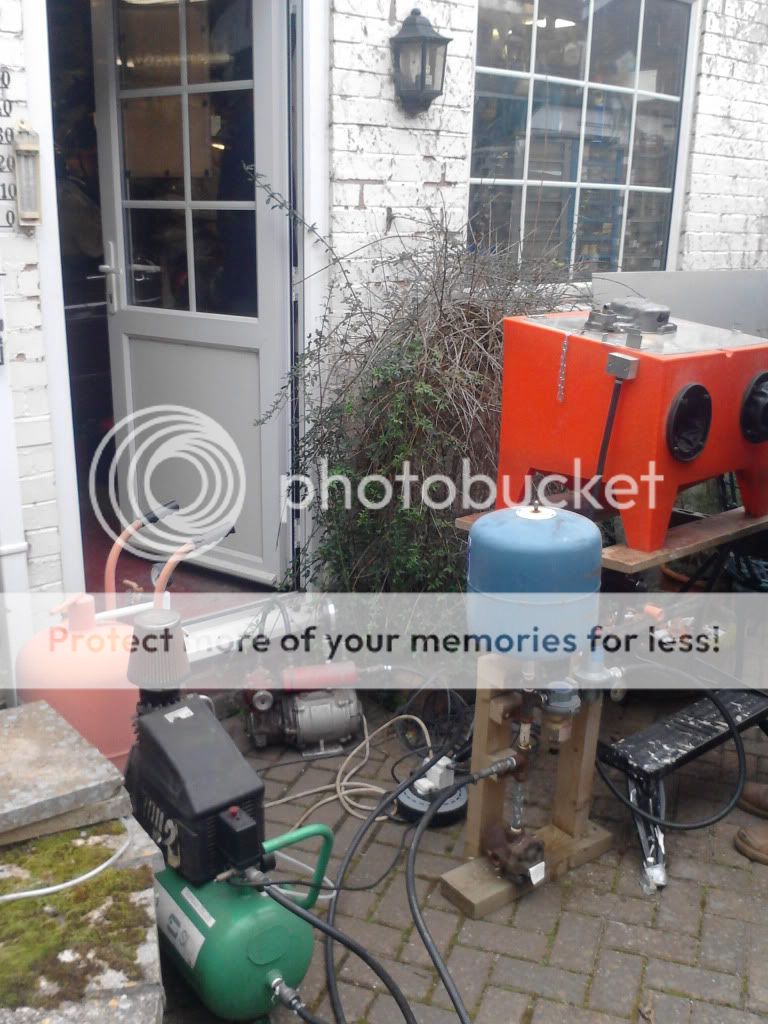

I set up the sand blasting gear outside (this was done last year in decent weather).

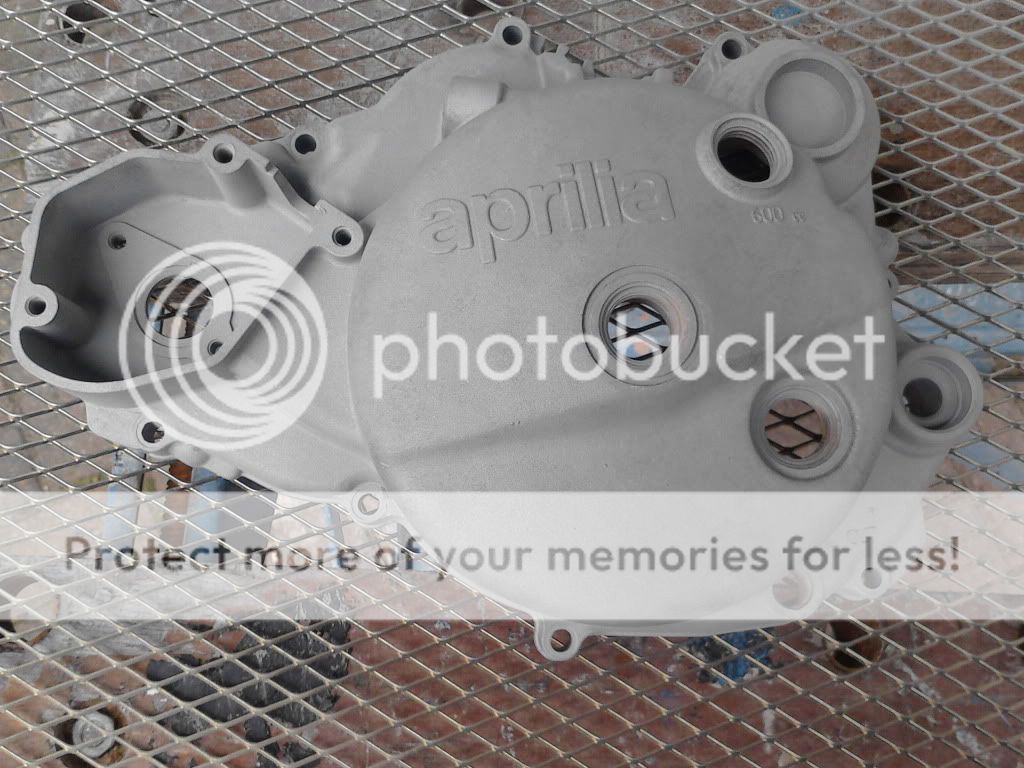

On a low regulated pressure i cleaned up the clutch cover.(Later date it will be degreased and laquered).

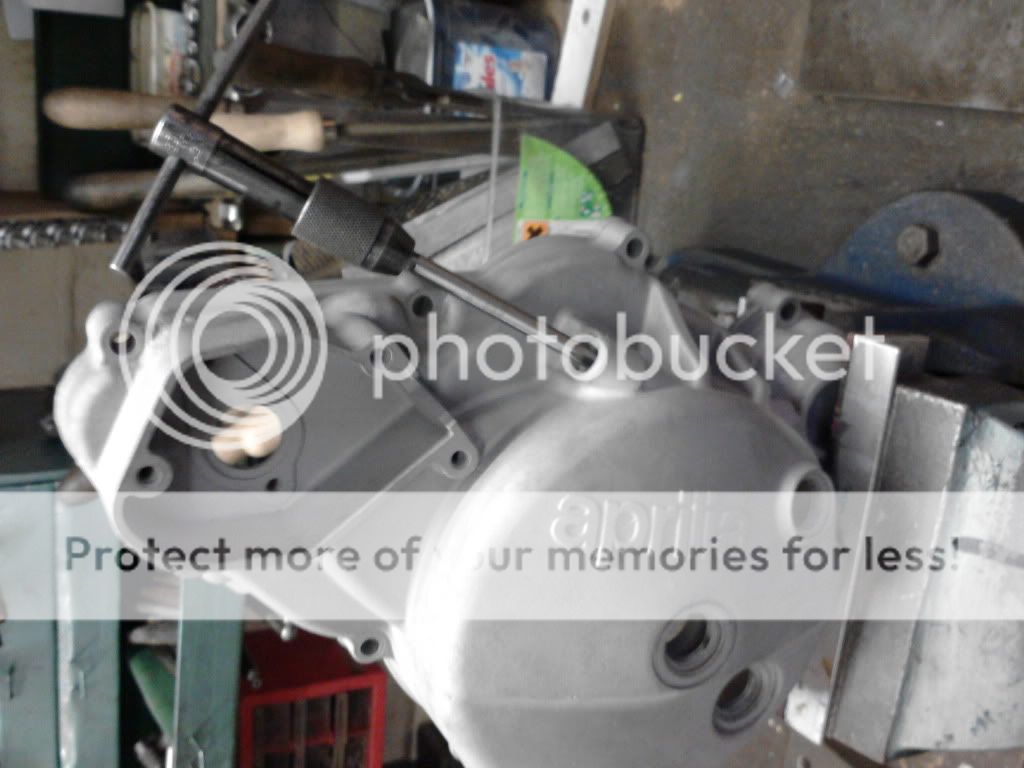

So where the original clutch cable located in the case,i needed to blank this off,by making a plug.So i tapped out to m8.

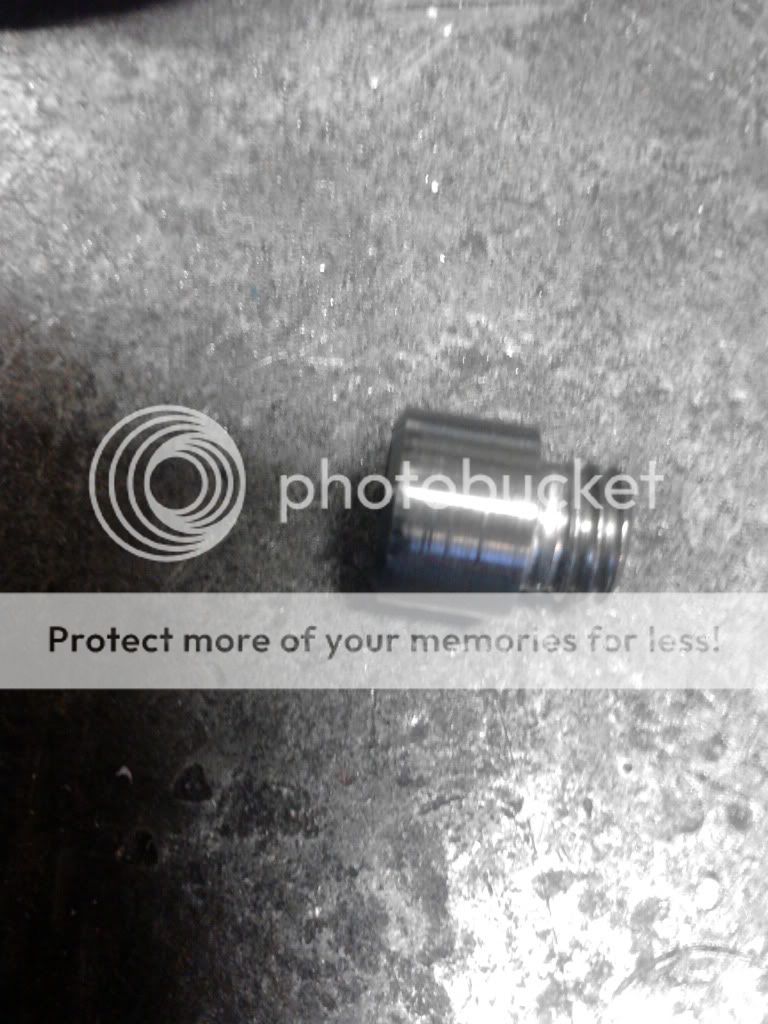

I cut down an allen cap m8 bolt.

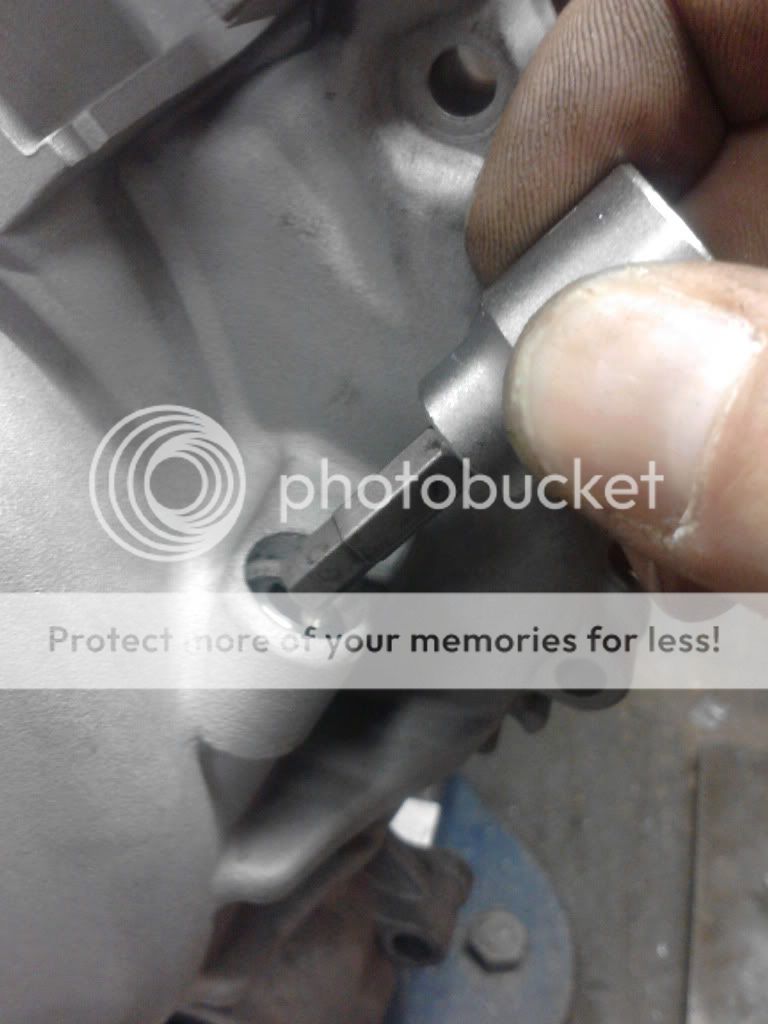

I then screwed this into the hole (loctited)

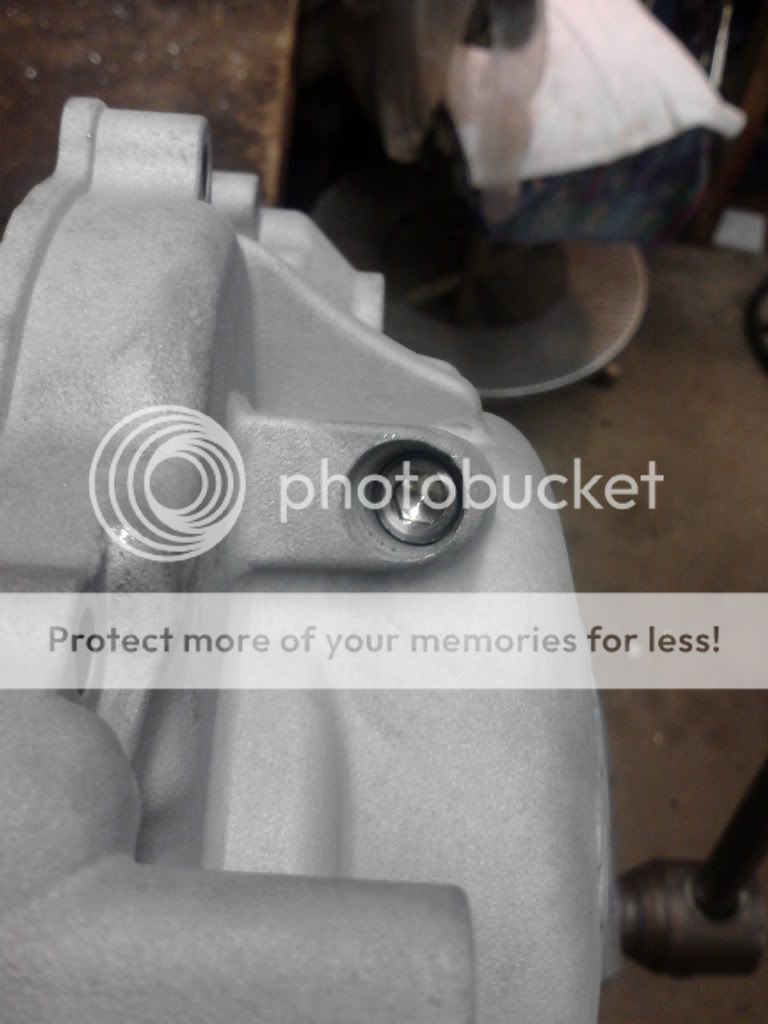

Bolt fully home,and sealed from the weather.
Next was to cut some 3 inch billet for the slave cylinder boss.Bandsaw

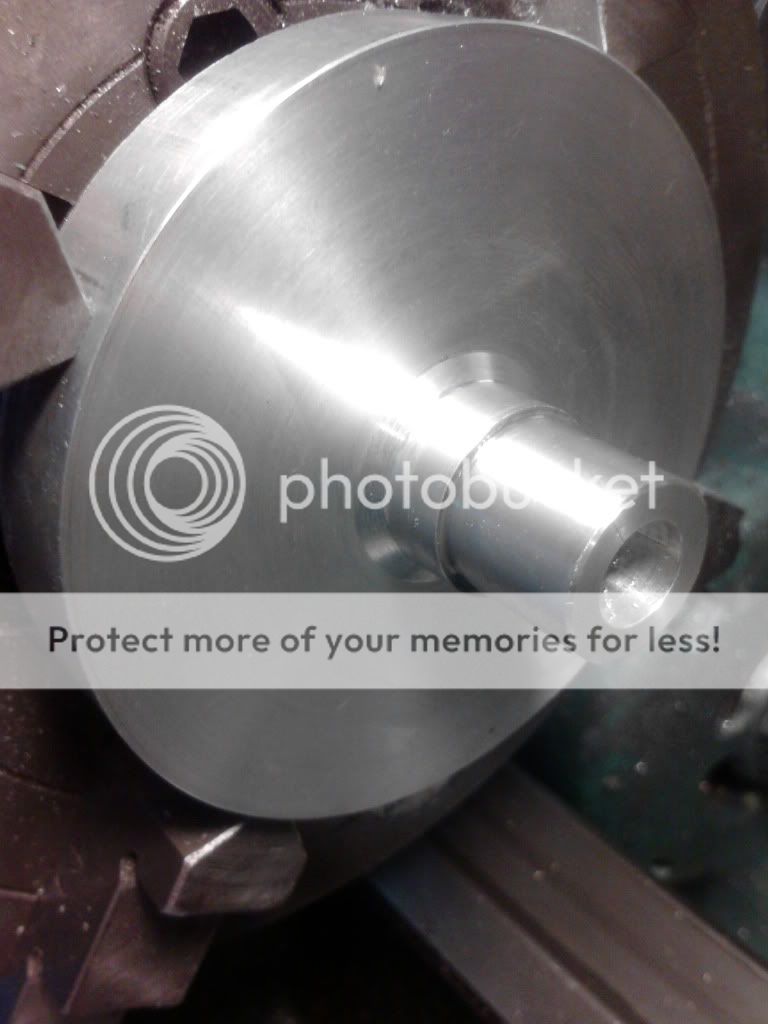

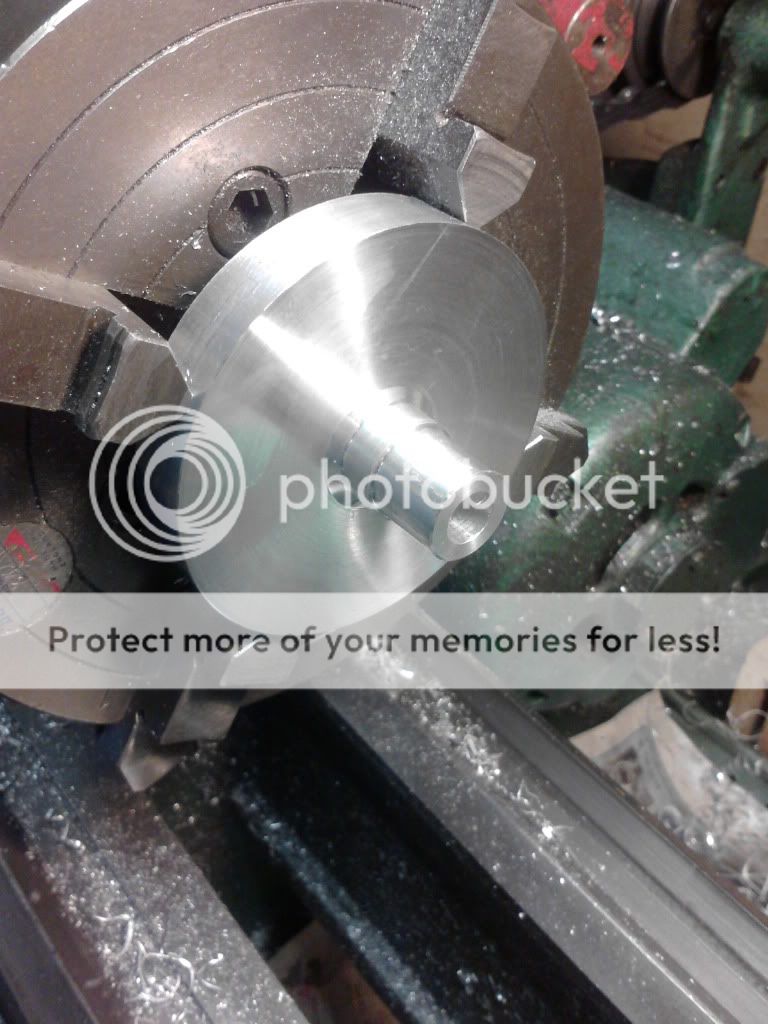

So now the billet was ready for some lathe work.I needed to turn it down and machine a thread to fit where the old clutch adjustment screw on the clutch cover would normally have located.

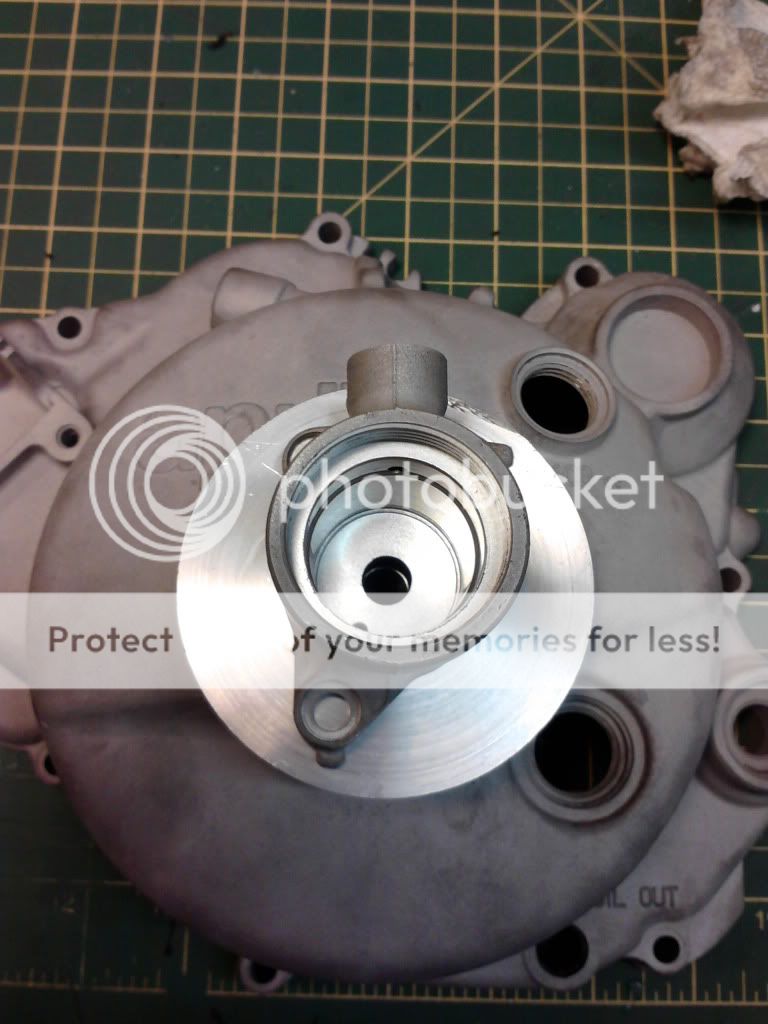

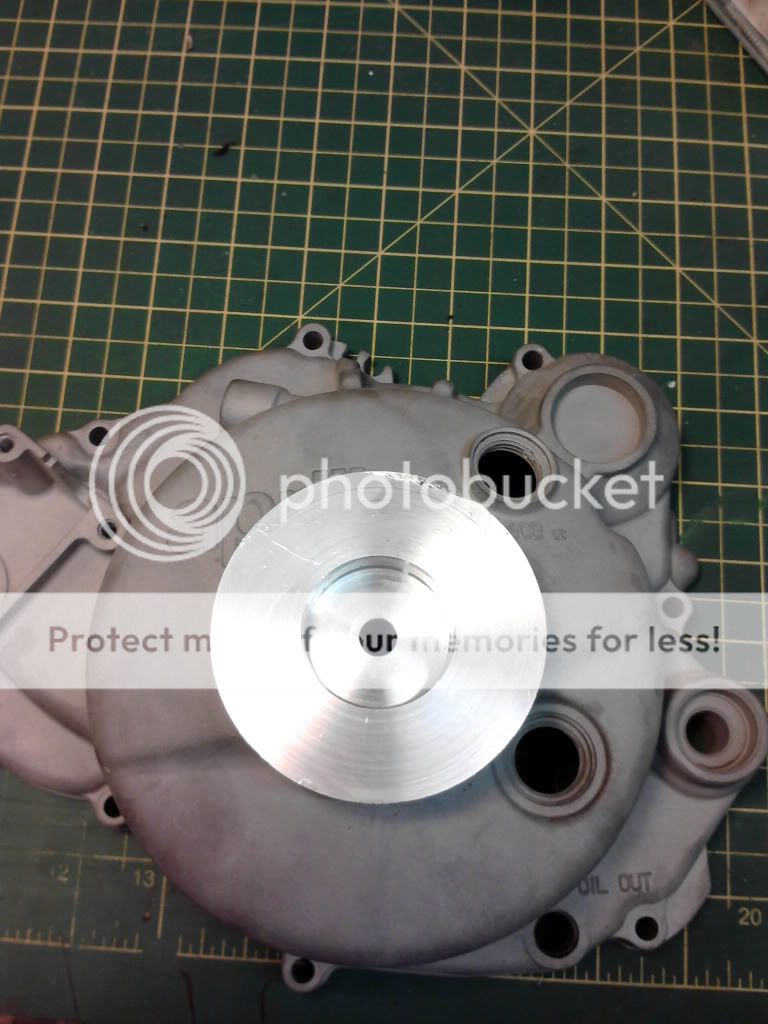

Using an o'ring the boss then threaded into the centre on the clutch cover.

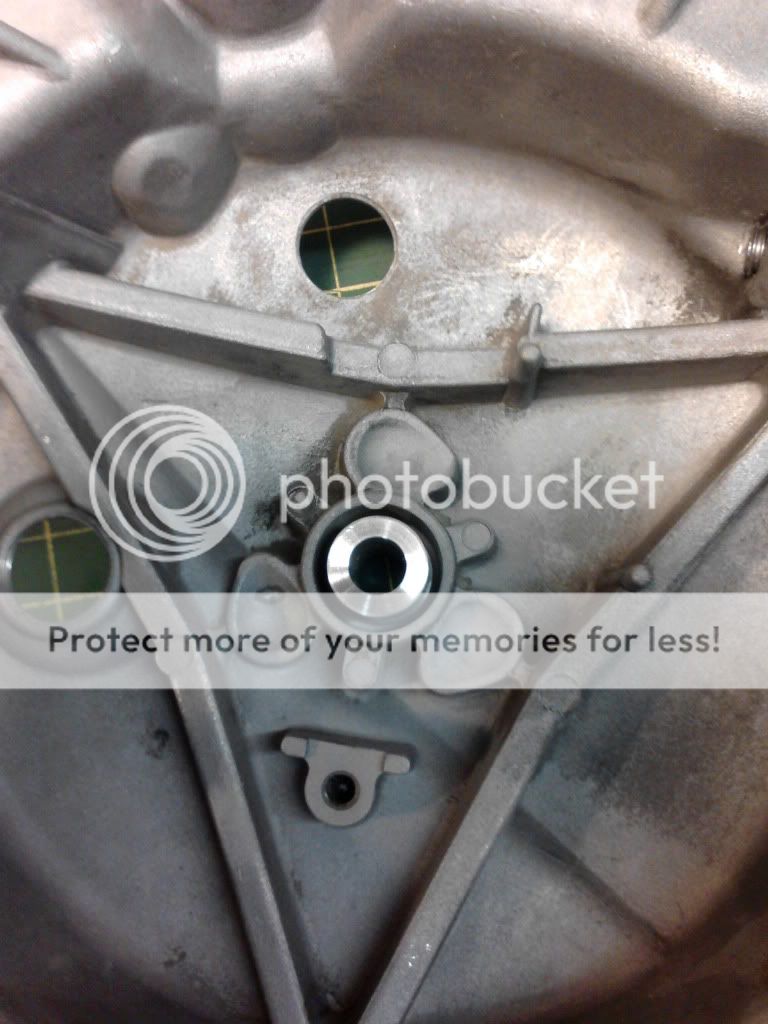

Inside the clutch cover.

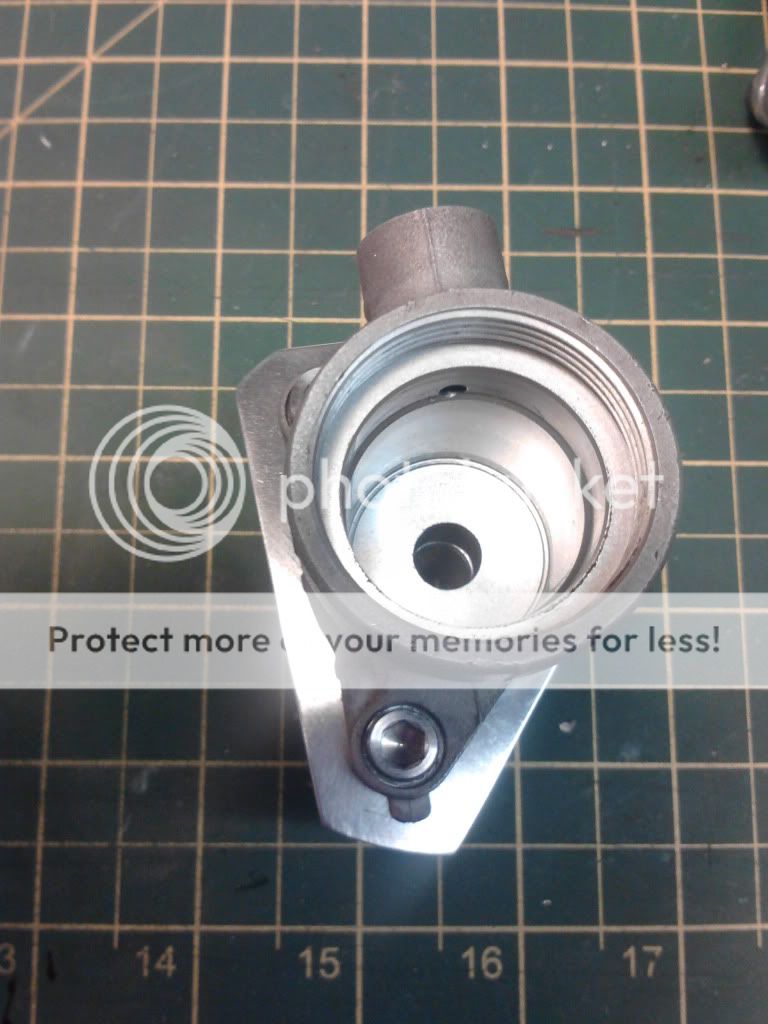

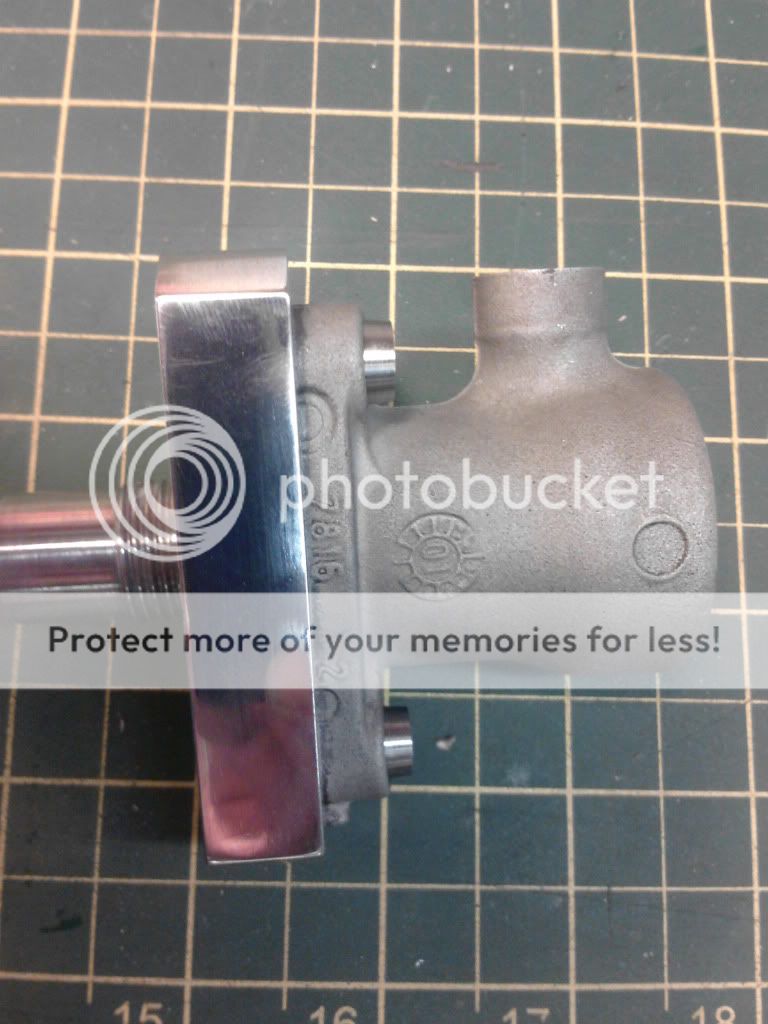

Next,i had to position the slave cylinder into the billet,drill and tap the holes to fasten the slave cylinder.

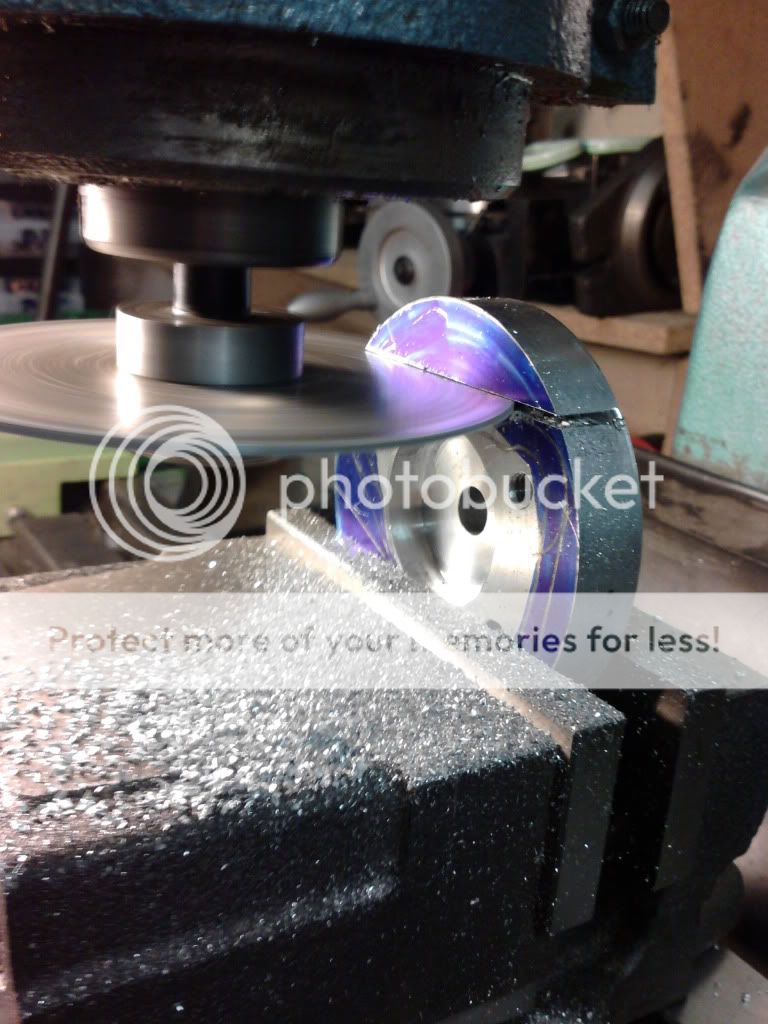

Now i set up the billet in the rotary table on the milling machine to shape the billet,kind of losing excess material.Using a slitting saw.

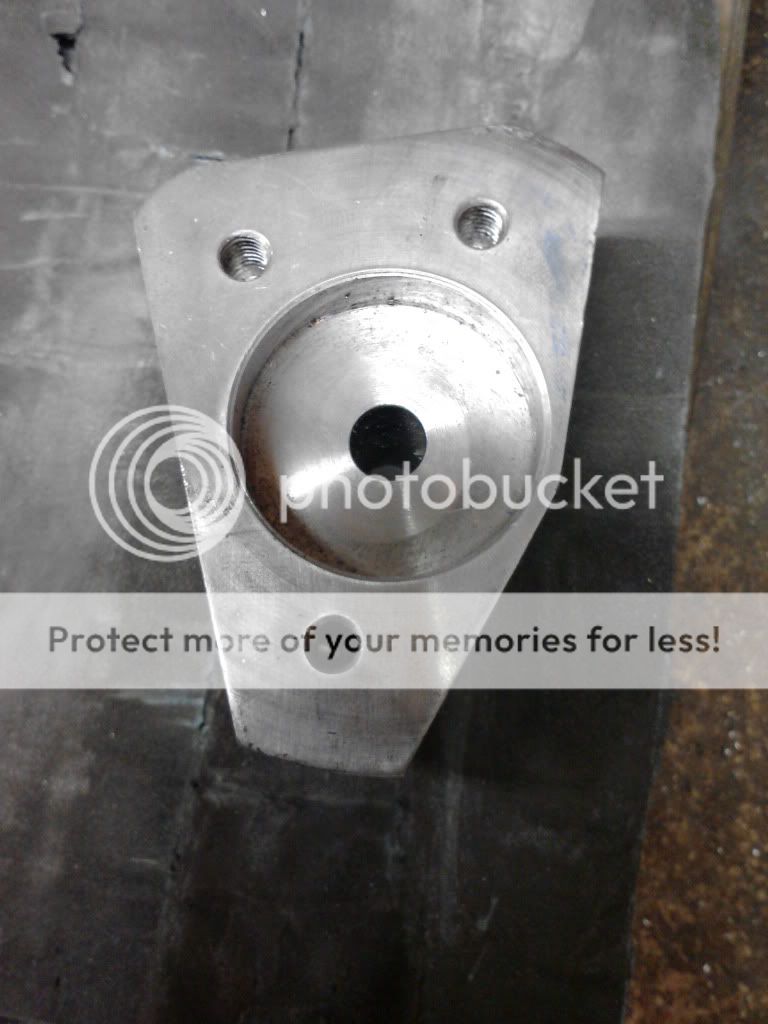

After an hour with various files and grades of paper,i finished the billet with a high polished surface.

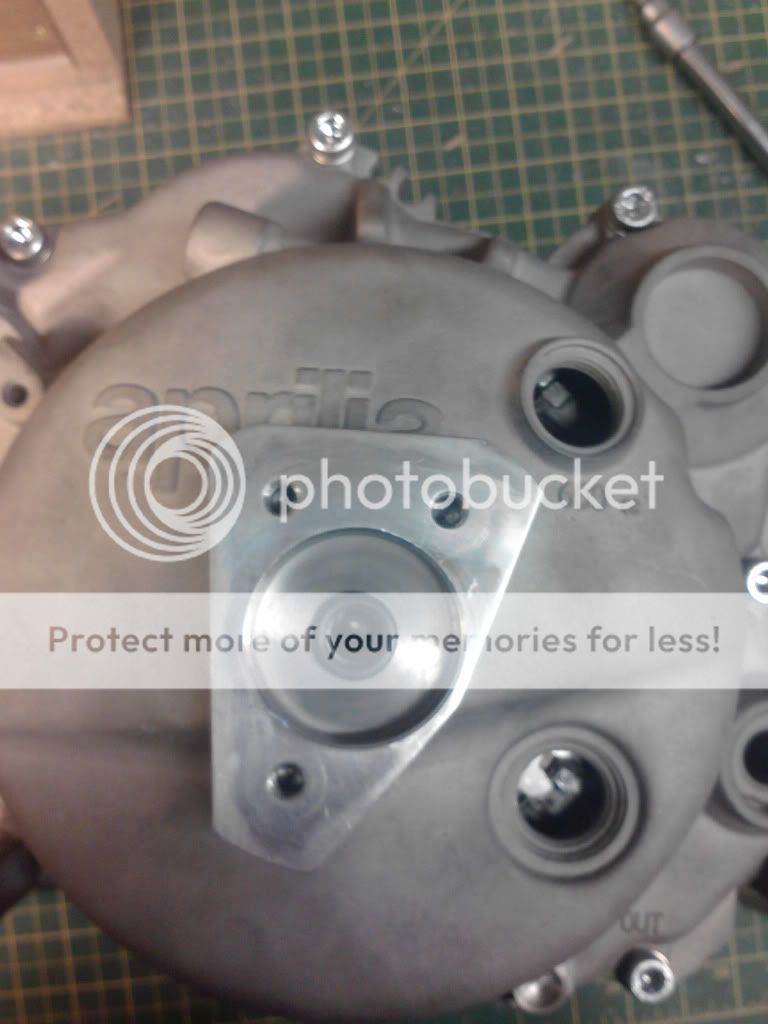

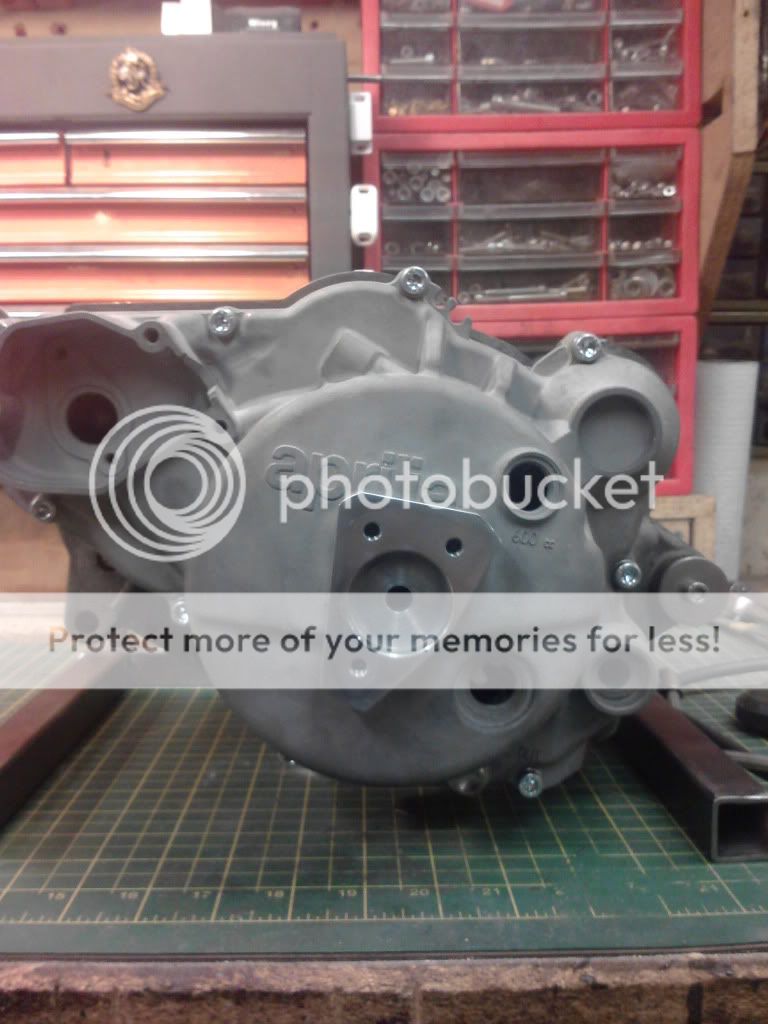

Now screwed into the clutch cover.

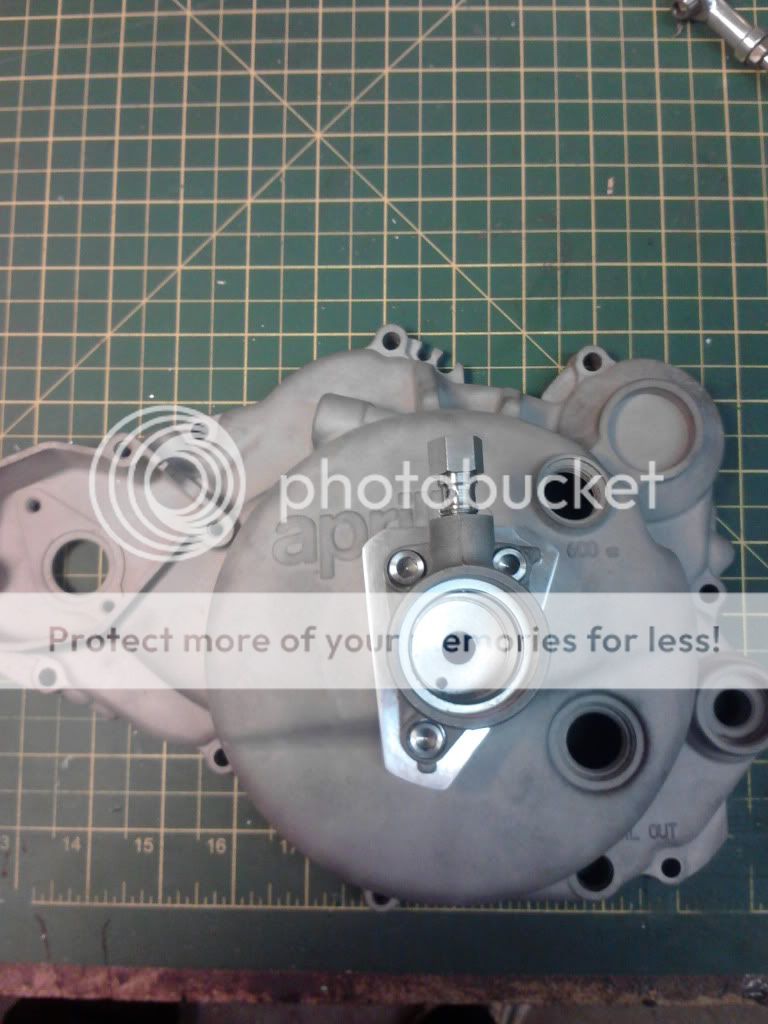

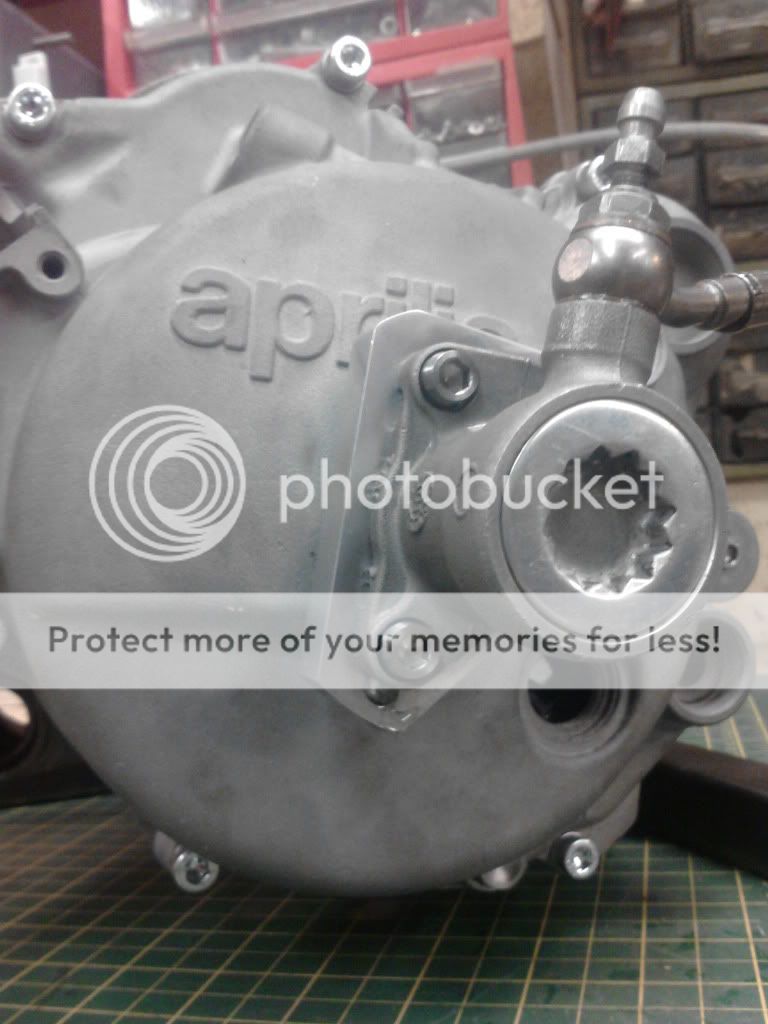

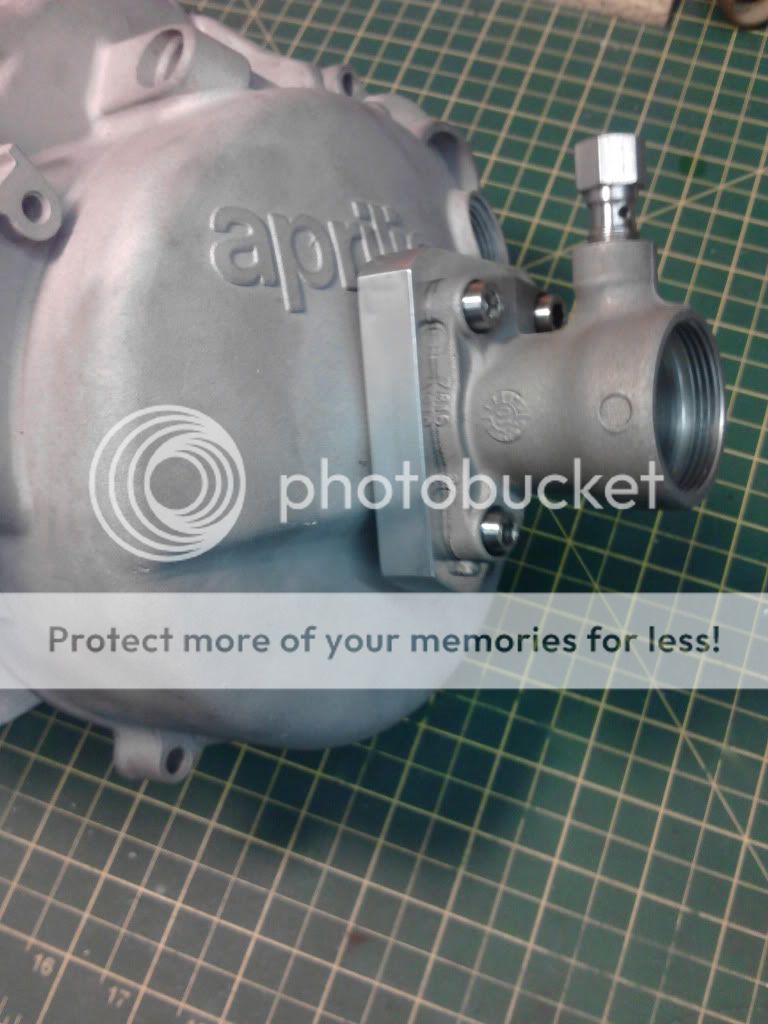

Brembo slave cylinder bolted on.

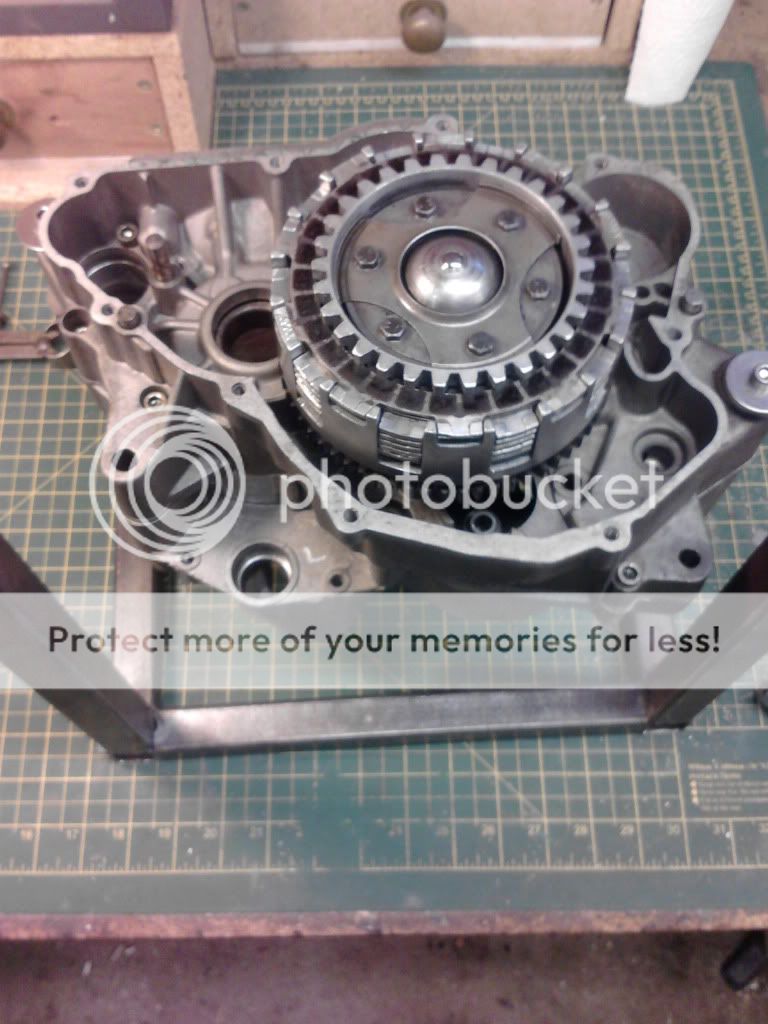

I stripped the bottom end down completely,then fitted the cases back together with just the input shaft and clutch.Then bolted it to my engine stand.
Fitted the clutch cover back on.

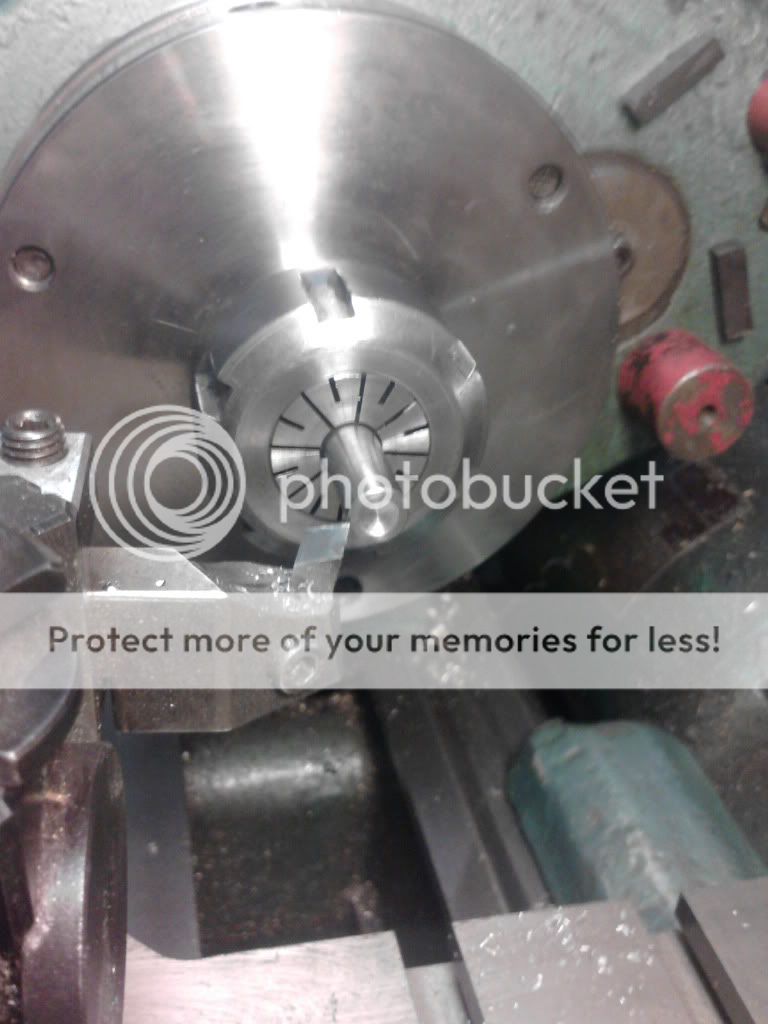

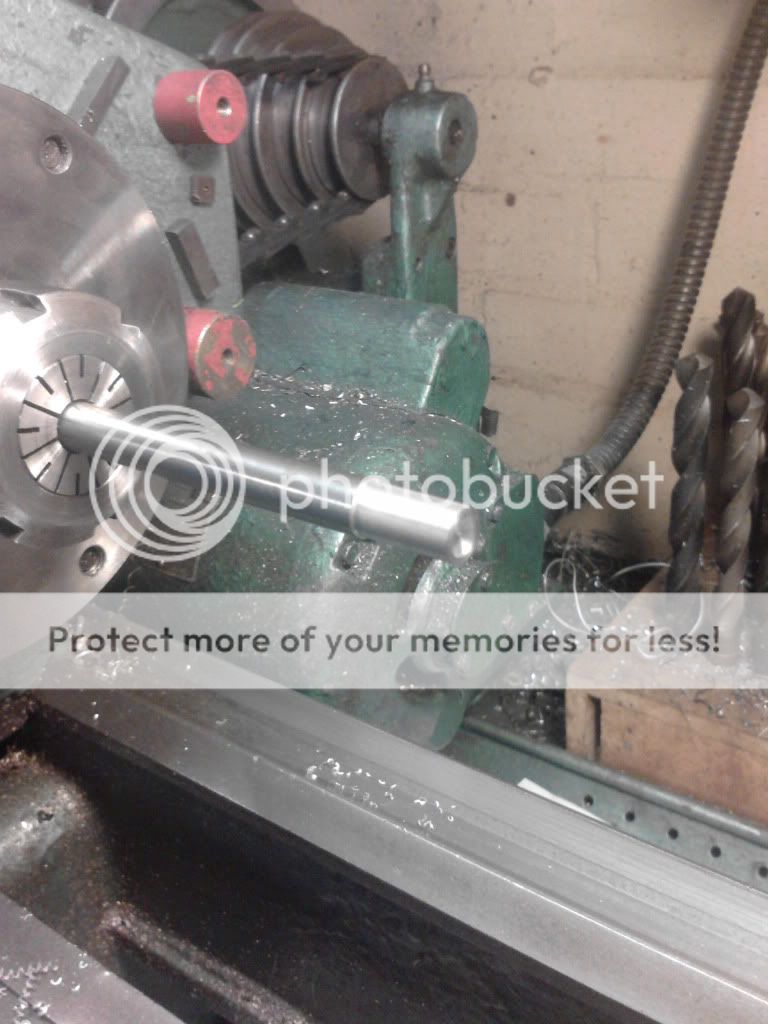

At this point i needed to measure up for the clutch push rod.So after drawing up the clutch push rod,i then started machining in the lathe.I'm using Silver steel for the push rod as i can harden and temper this quite easy.The push rod itself is 70mm in length,8.8mm in width,with a bull nose at one end and a dish at the other (to locate on the clutch pressure plate ball bearing).

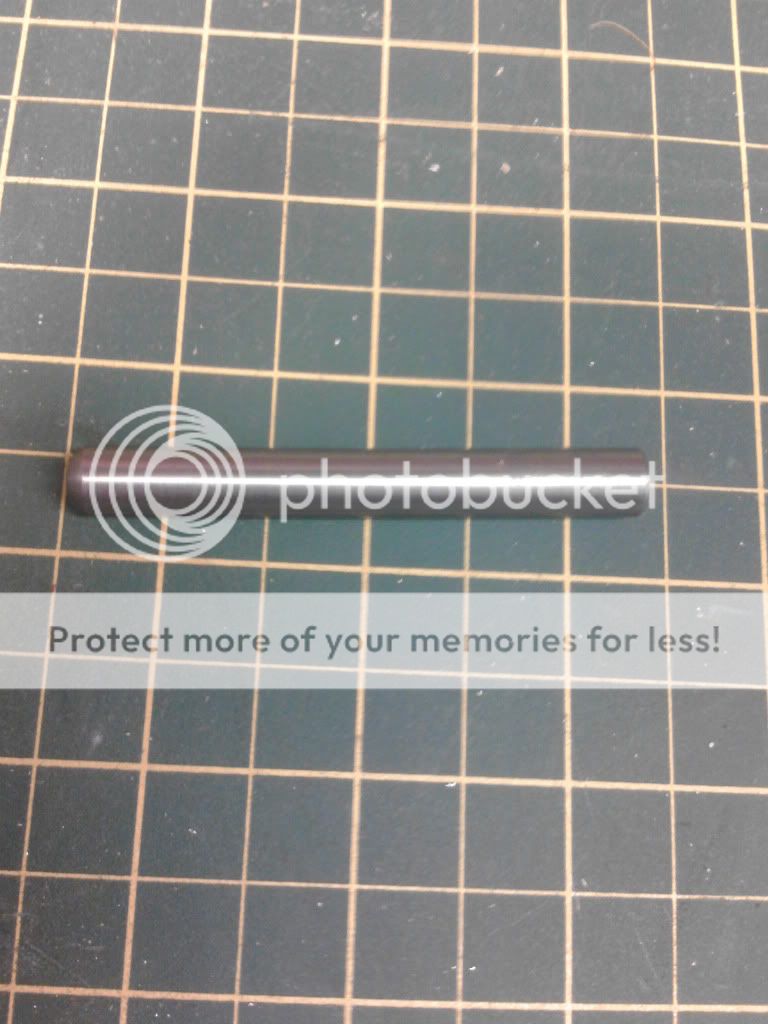

push rod finished.
So i then fitted the push rod and put the slave cylinder together.

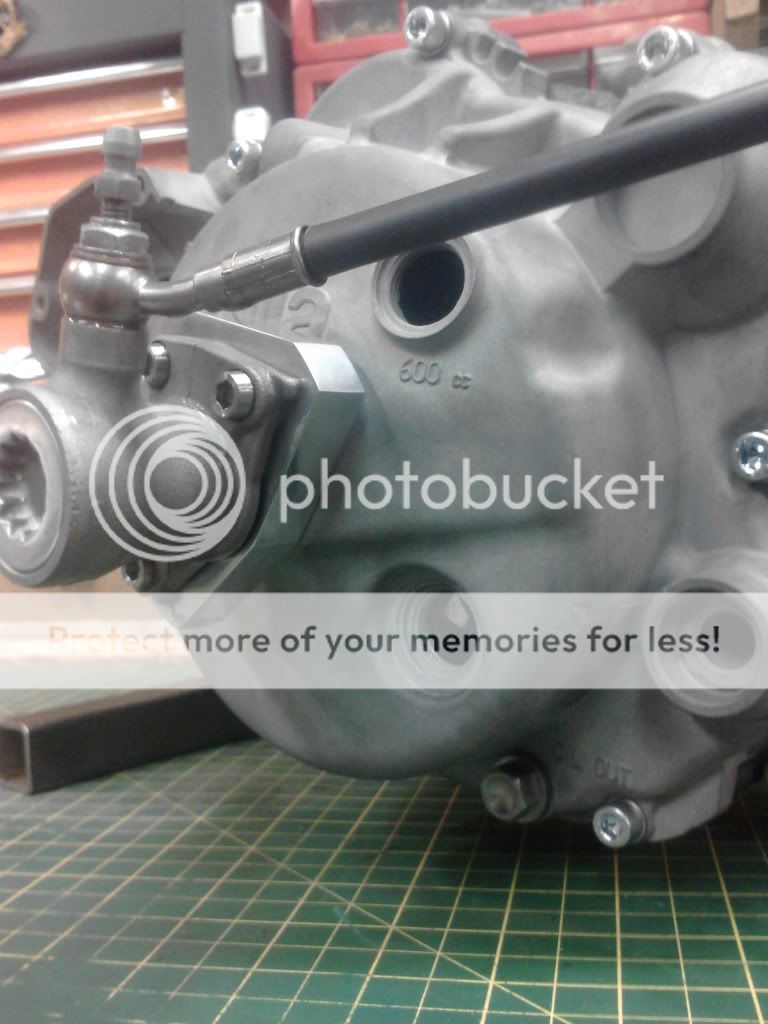

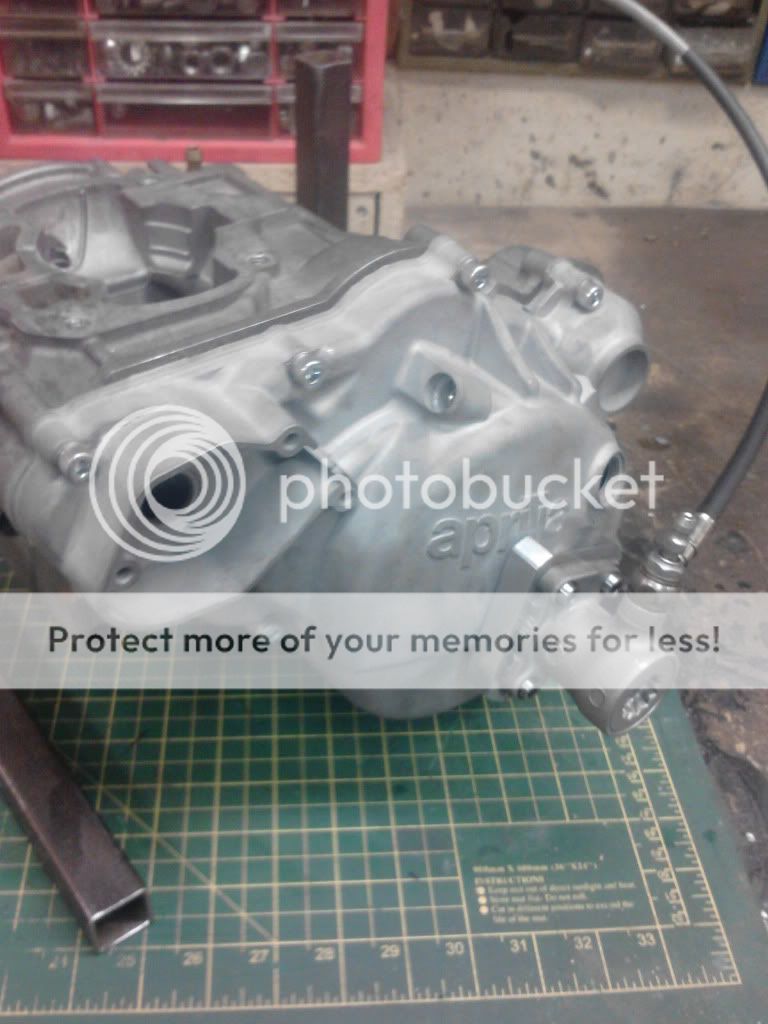

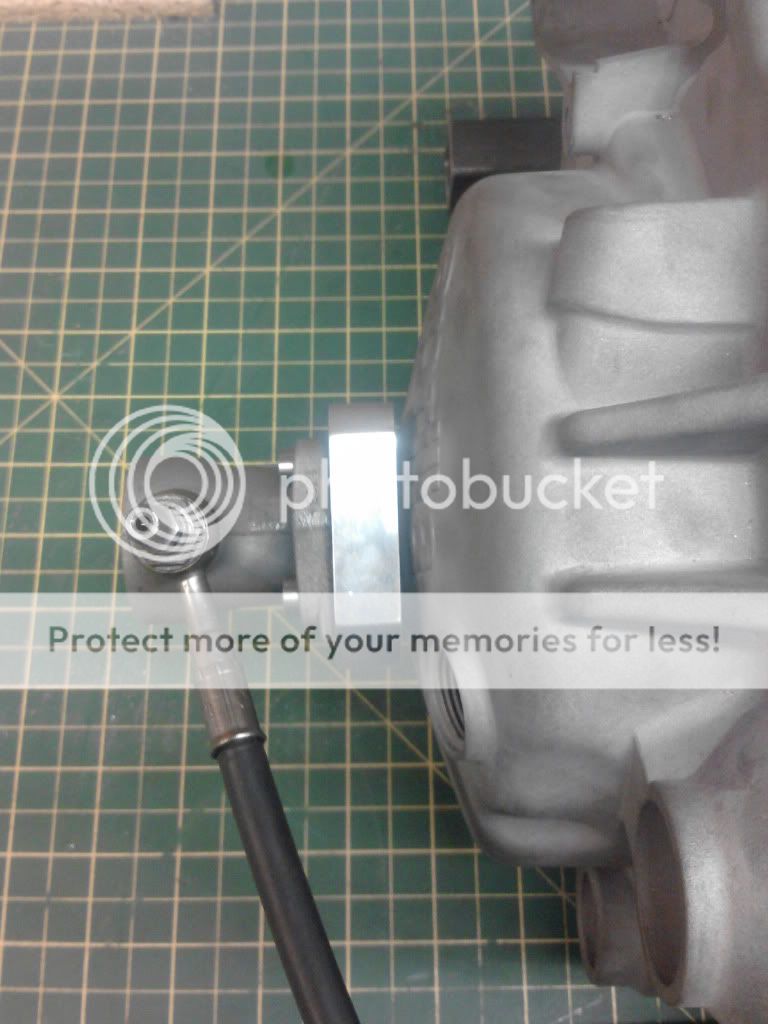

Fitted the braided line.

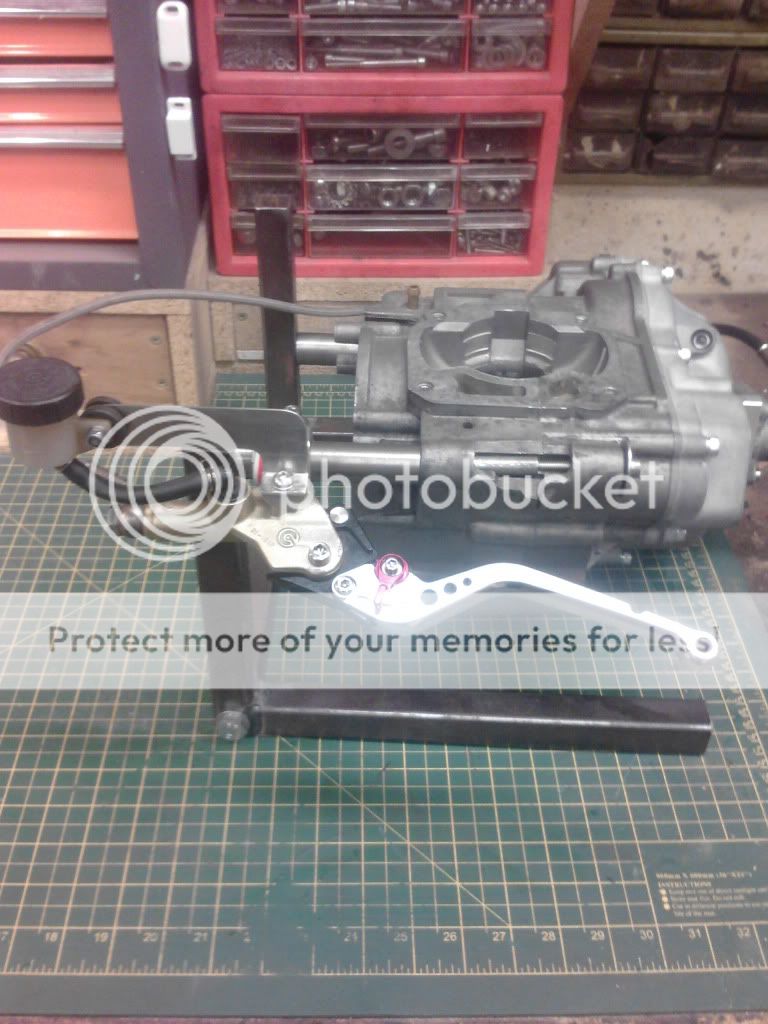

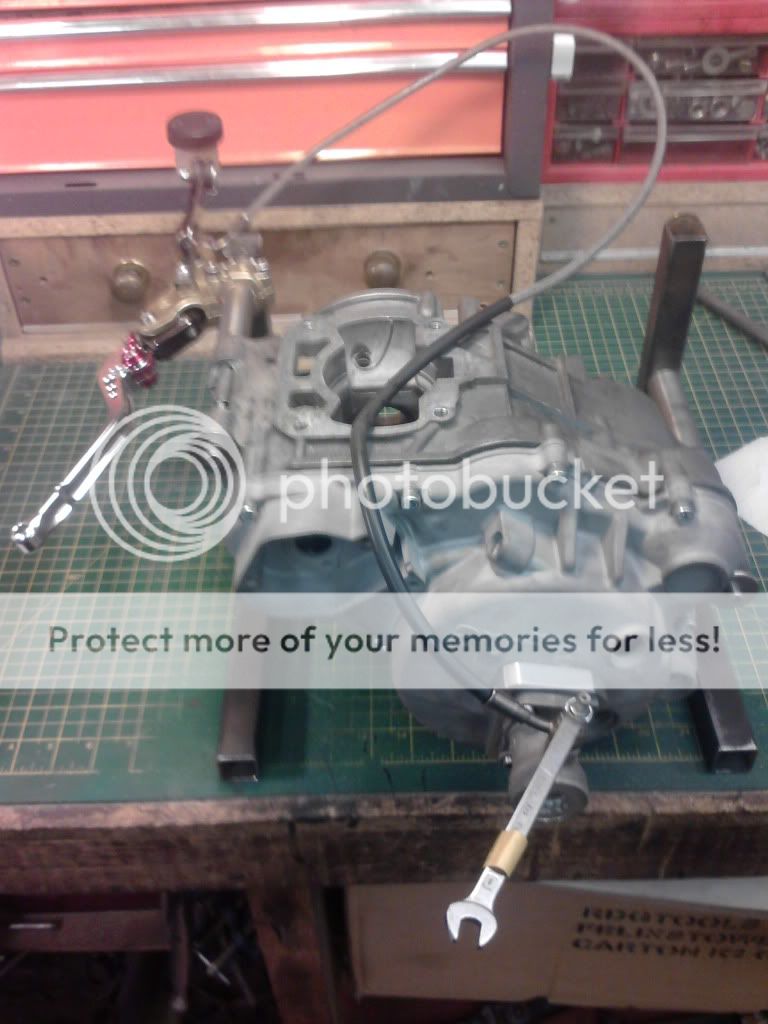

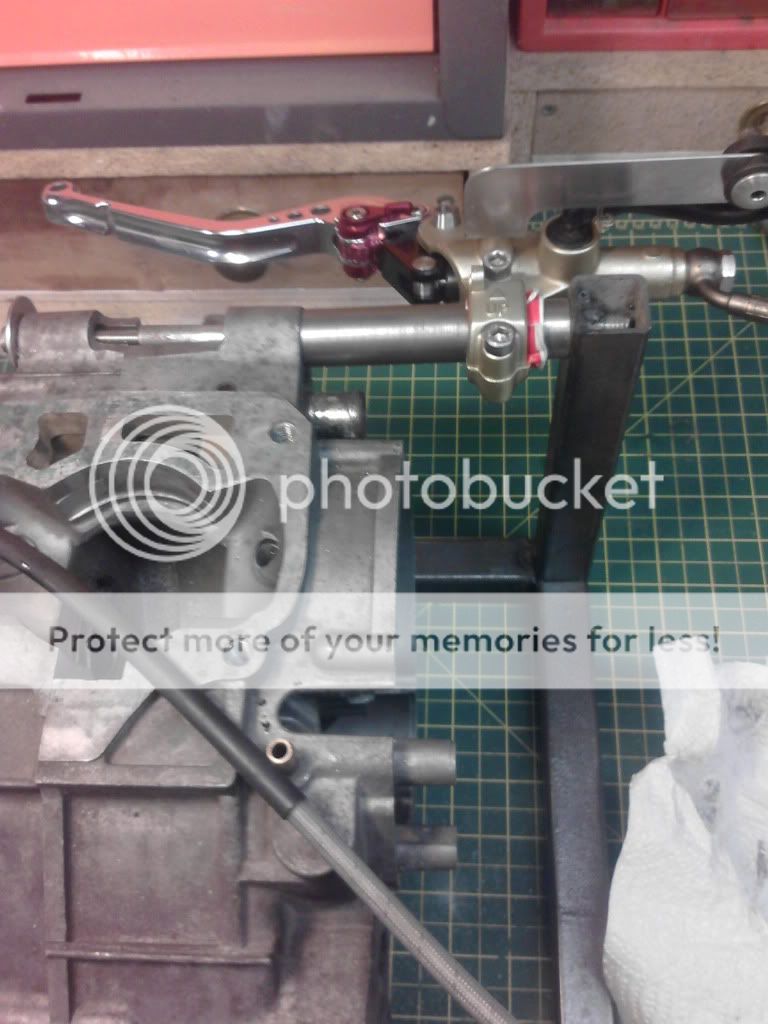

I then fitted the Brembo master cylinder to the engine stand (for testing/bleeding purposes)

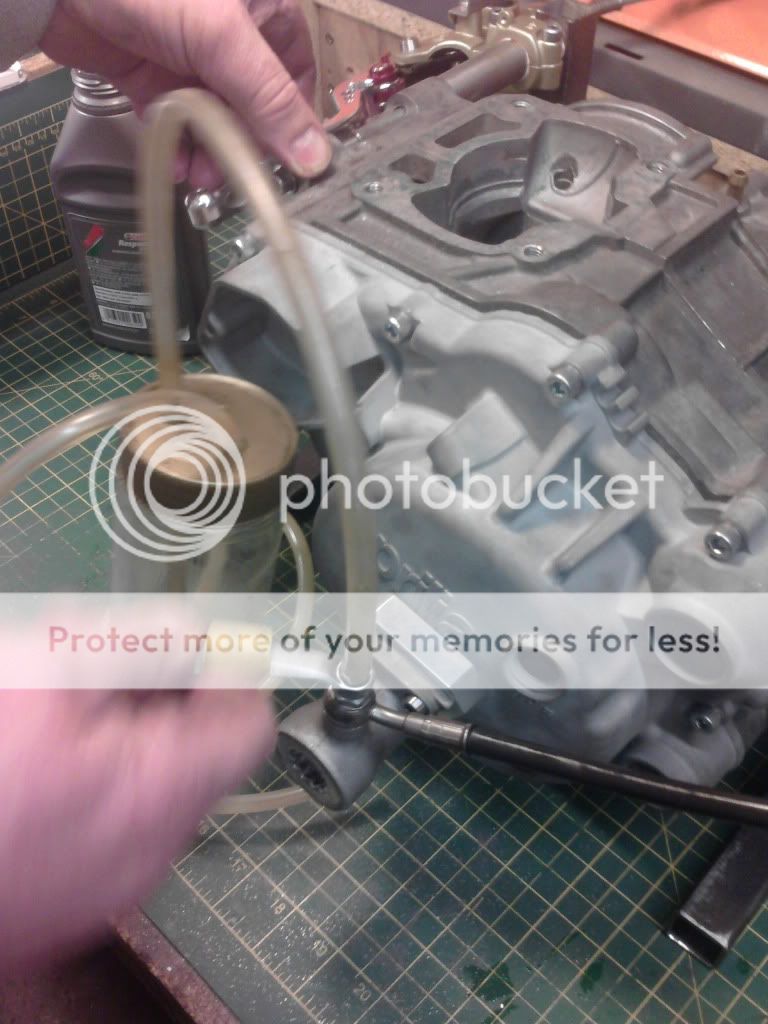

I then bled the clutch.
All finished.Works very well.Light pull on the clutch lever,which is adjustable.
This conversion will be going on my new 169.6cc engine build.
I shall be starting the build in the next few weeks.So another thread will be made.watch this space.
Hope you enjoyed this thread as much as i enjoyed making this
